GND_JC_C - x-lhd-sop2

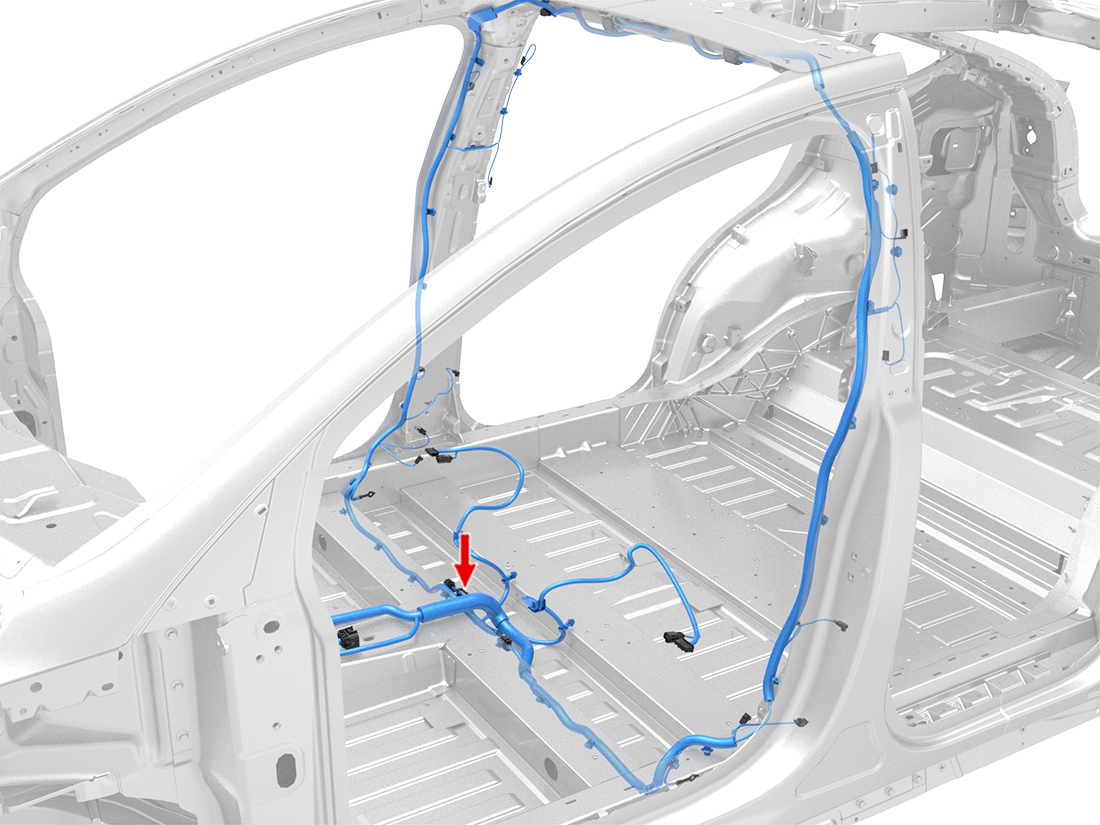

Location:

Connector Detail: sumitomo_6098-3928

Gender:

Color: GY

Cav	Col	Gauge
1	BK	0.35
2	BK	0.35
3	BK	0.35
4	BK	0.5
5	BK	0.35
6	BK	0.35
7	BK/WH	0.5
8	BK	0.35
9	BK	0.35
10	BK	0.35
11	BK	0.35
12	BK	0.5
13	BK	0.35
14	BK	0.35
15	BK	0.35
16	BK	0.5
17	BK	0.5
18	BK/WH	0.5
19	BK	0.35
20	BK	0.35
21	BK	0.35
22	BK	0.35
