GND_JC_C - x-lhd-sop2a

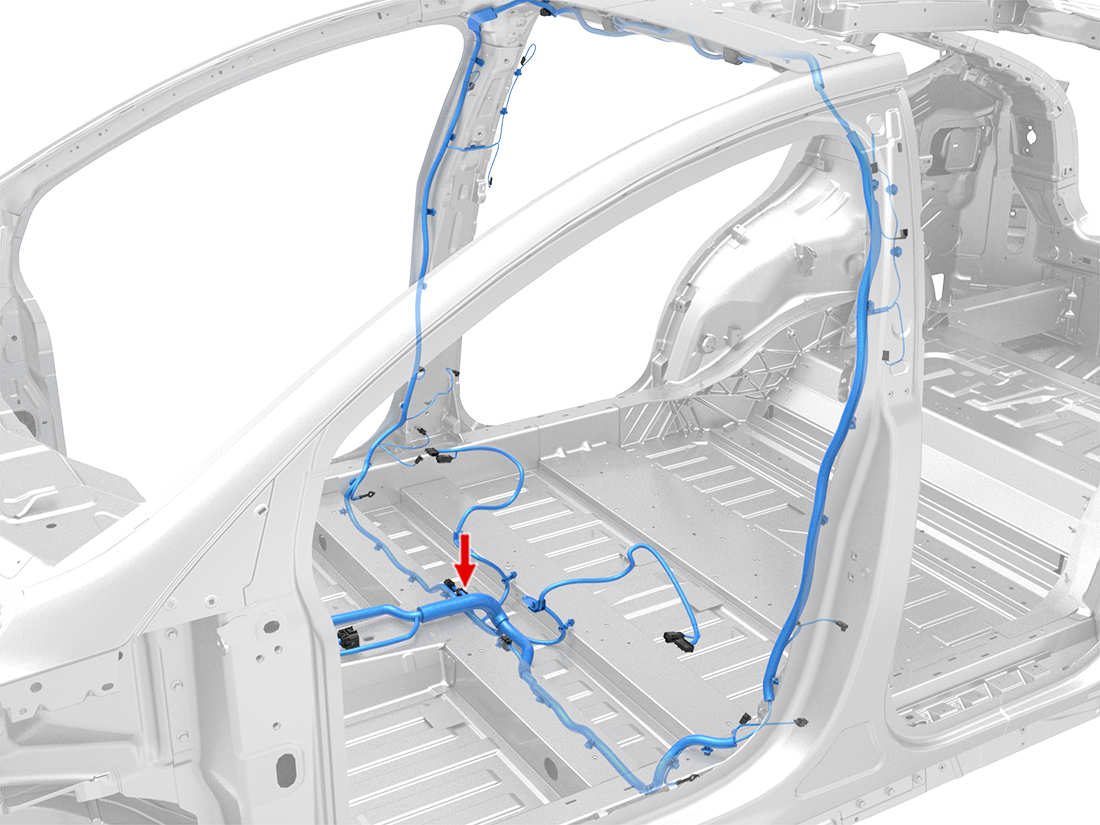

Location:
Connector Detail: sumitomo_6098-3928
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.35 |
| 3 | BK | 0.35 |
| 4 | BK | 0.5 |
| 5 | BK | 0.35 |
| 6 | BK | 0.35 |
| 7 | BK/WH | 0.5 |
| 8 | BK | 0.35 |
| 9 | BK | 0.35 |
| 10 | BK | 0.35 |
| 11 | BK | 0.35 |
| 12 | BK | 0.5 |
| 13 | BK | 0.35 |
| 14 | BK | 0.35 |
| 15 | BK | 0.35 |
| 17 | BK | 0.5 |
| 18 | BK/WH | 0.5 |
| 19 | BK | 0.35 |
| 20 | BK | 0.35 |
| 21 | BK | 0.35 |
| 22 | BK | 0.35 |
