GND_JC_C - x-rhd-sop8

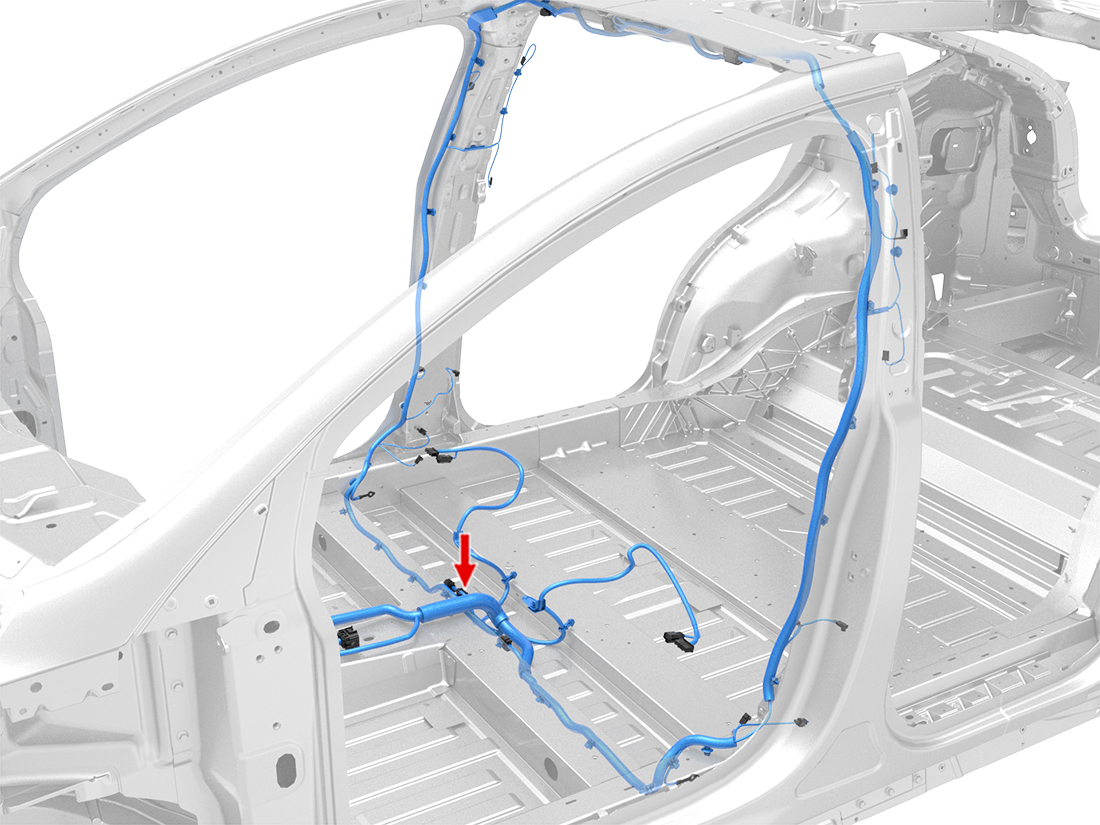

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X981M | 9 | ||
| 2 | |||||||||
| 3 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X029 | 6 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.50 | X238 | 3 | ||
| 5 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X981M | 10 | ||
| 6 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X981M | 5 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK/WH | 0.50 | GND_C2 | 1 | ||
| 8 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X945 | 22 | ||
| 9 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X945 | 25 | ||
| 10 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X945 | 16 | ||
| 11 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X945 | 19 | ||
| 12 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.50 | X957 | 7 | ||
| 13 | |||||||||
| 14 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X201 | 57 | ||
| 15 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X201 | 41 | ||
| 16 | |||||||||
| 17 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.50 | X237 | 3 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK/WH | 0.50 | GND_C2 | 1 | ||
| 19 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X940 | 22 | ||
| 20 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X940 | 25 | ||
| 21 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X940 | 16 | ||
| 22 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X940 | 19 | ||
