Seal - Outer Belt - Rear Door - LH (Remove and Replace)

Correction Code 11704402

Removal

  1. Open the LH front door.
  2. Lower the RH rear window fully.
  3. Partially open the LH rear door.

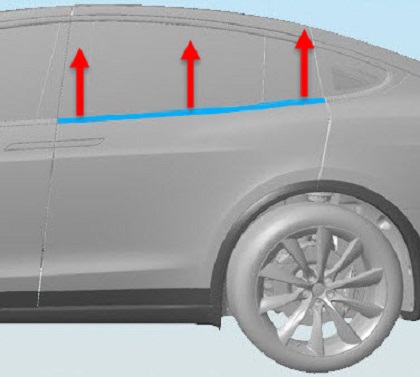

  4. Pull the brightwork and seal straight up to release it from the door.
  5. Remove the outer belt seal from the vehicle.

Installation

Installation procedure is the reverse of removal.
