Button - Cushion Adjust - Driver Seat (Remove and Replace)

Correction code 13018102 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Remove

  1. Open the LH front door and fully lower the LH front window.

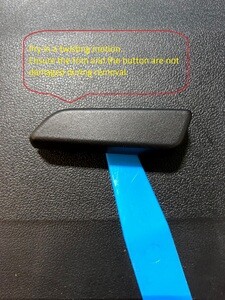

  2. Use a trim tool to carefully release the clips that attach the driver seat cushion switch button to the seat assembly, and then remove the button from the assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the button and seat trim.
    Tip: Pry in a twisting motion.

Install

  1. Install the driver seat cushion switch button to the seat assembly.
  2. Raise the LH front window and close the LH front door.
