Latch - Cinch - Trunk (Remove and Replace)

Correction code 11355012 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Torque Specifications

Table 1. Torque Specifications: Latch - Cinch - Trunk (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the trunk cinch latch to the trunk lid
8 Nm (5.9 lbs-ft)
  • 10 mm socket
  • 4 in extension
  • Ratchet/torque wrench
Reuse

Remove

  1. Remove the power trunk latch cover. See Cover - Latch - Power Trunk (Remove and Replace).

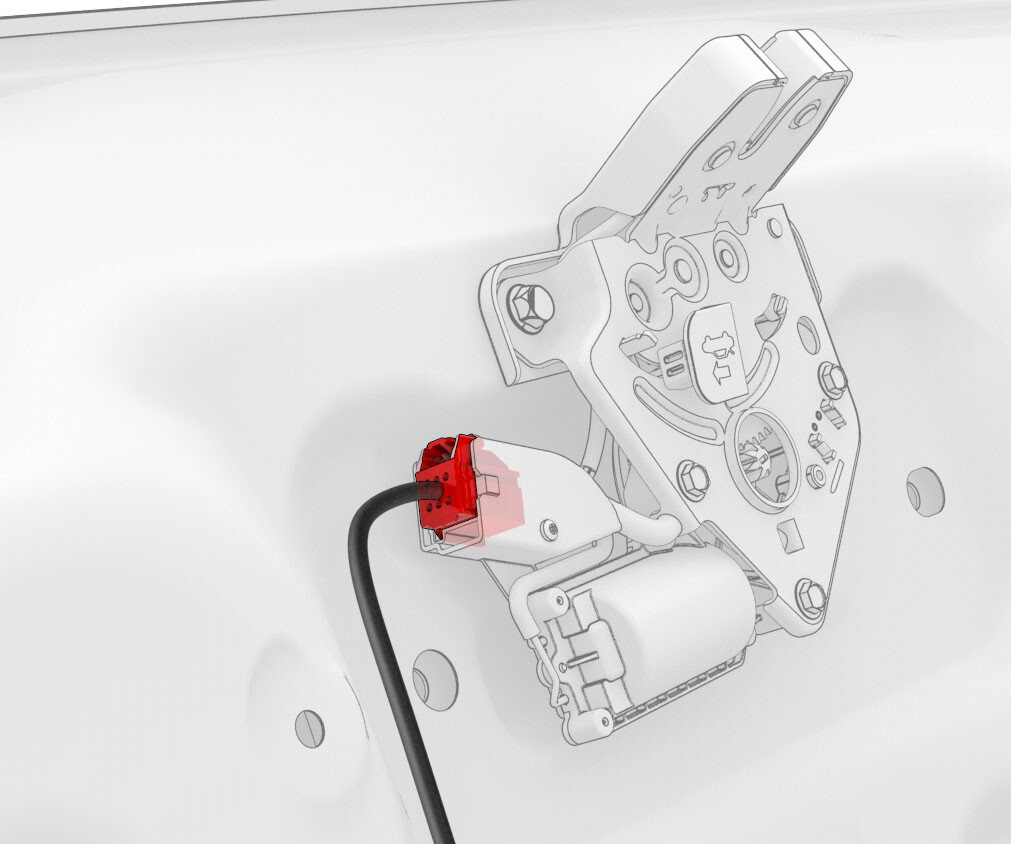

  2. Disconnect the electrical harness from the trunk cinch latch.
  3. Remove the bolts that attach the trunk cinch latch to the trunk lid, and then slide the latch downwards to release the tabs and remove the latch.
    8 Nm (5.9 lbs-ft)
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension
    • Ratchet/torque wrench

Install

Installation procedure is the reverse of removal.
