Front Shock Tower Closeout

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes
1	Front Shock Tower Closeout
12	Structural Bulb Rivet, 6.5 mm
1	Structural Rivet, 6.5 mm Medium

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

Remove the Torque Box Cover Assembly.
Remove the original component.

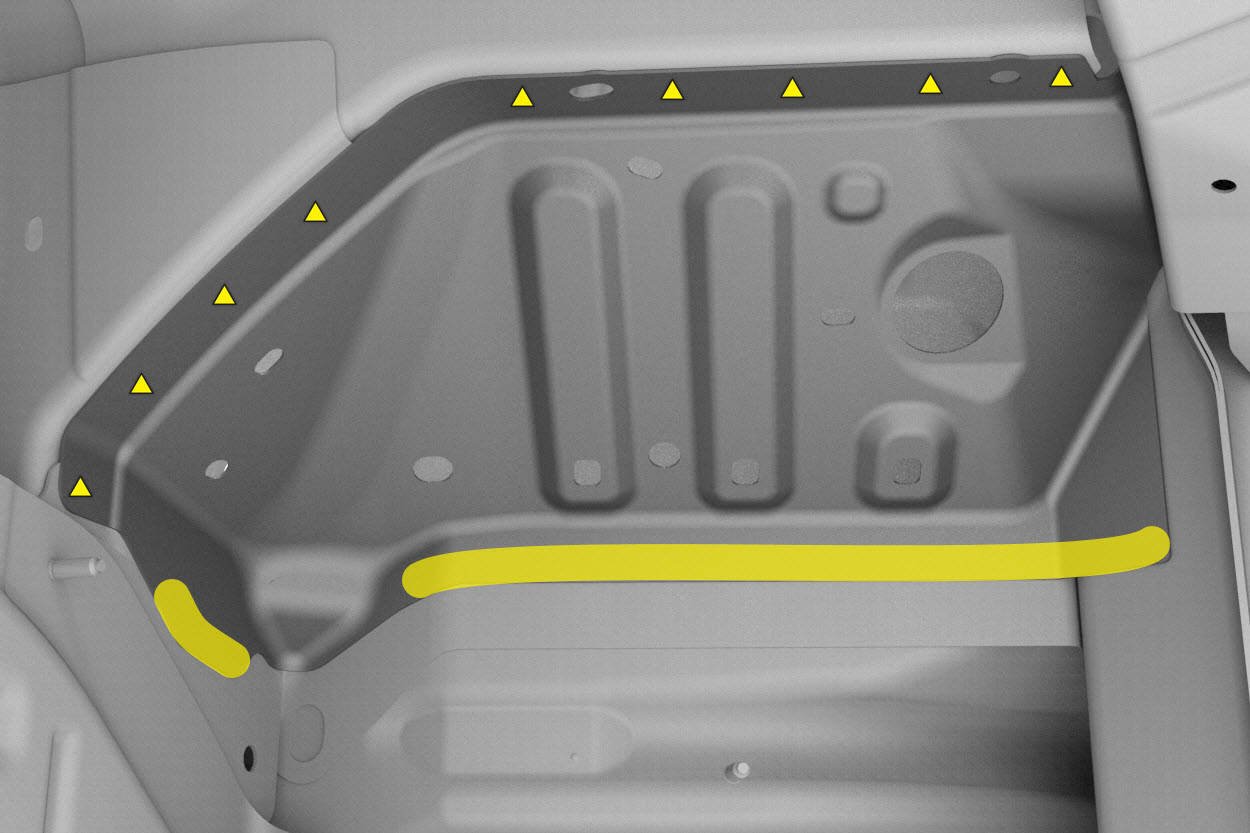

Factory Spot Weld

Note

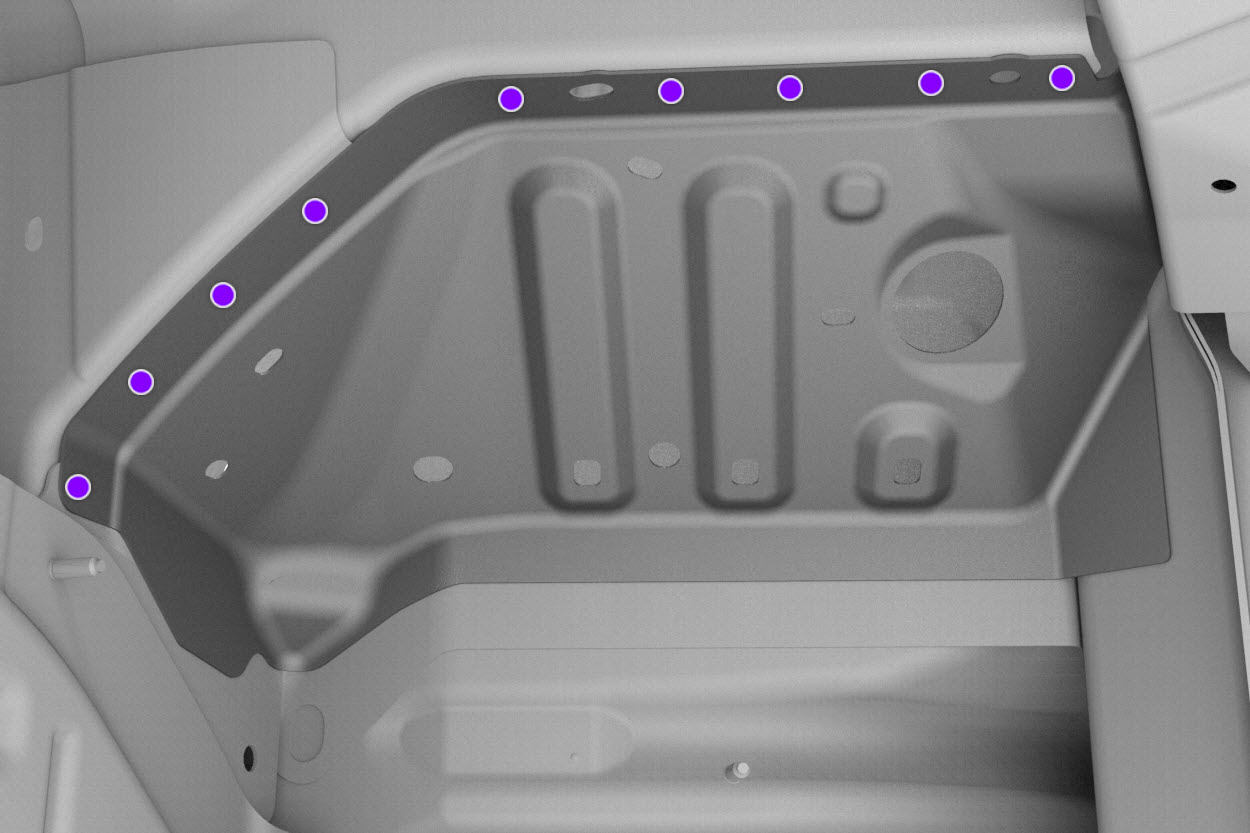

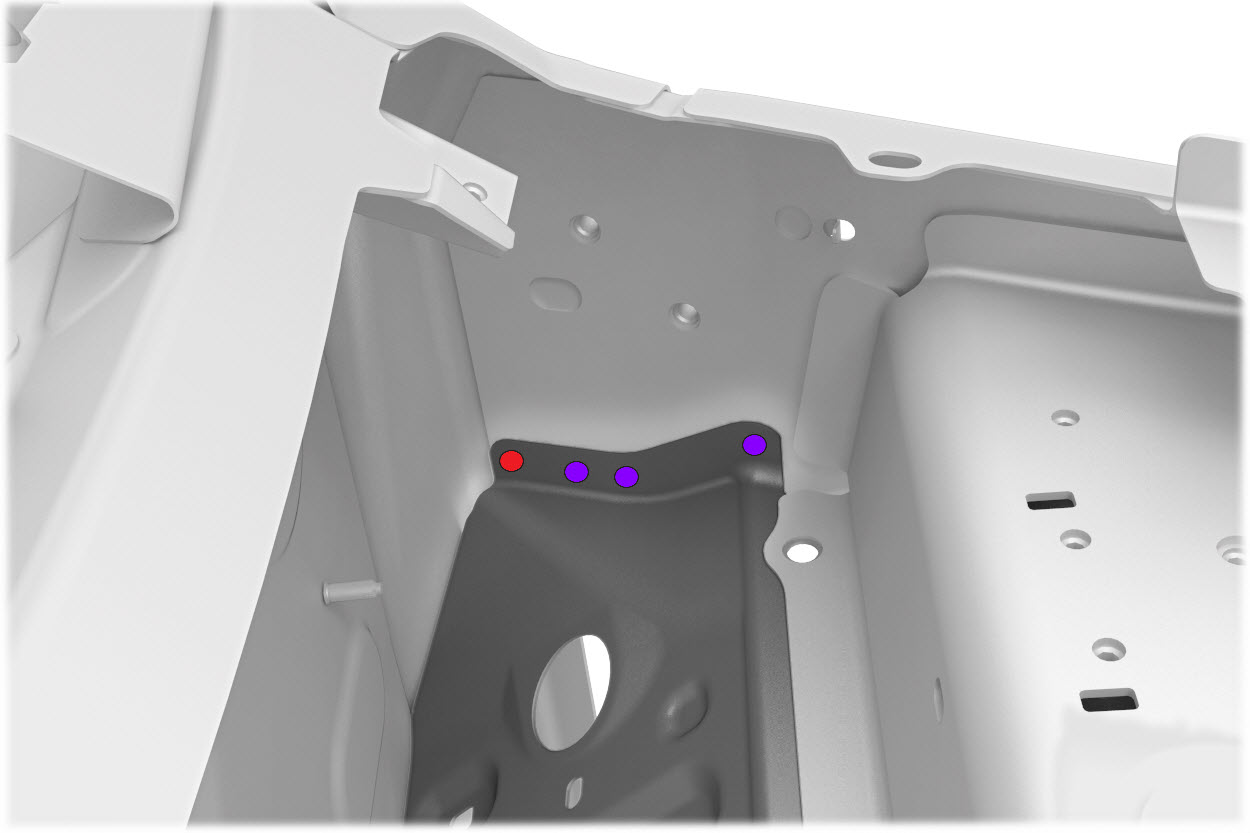

The 1st image shows the Shock Tower Closeout from below, and the 2nd image is from above.
Prepare for installation.

Structural Bulb Rivet, 6.5 mm

Structural Rivet, 6.5 mm Medium
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Install the Torque Box Cover Assembly.
Perform any necessary post-repair operations.
