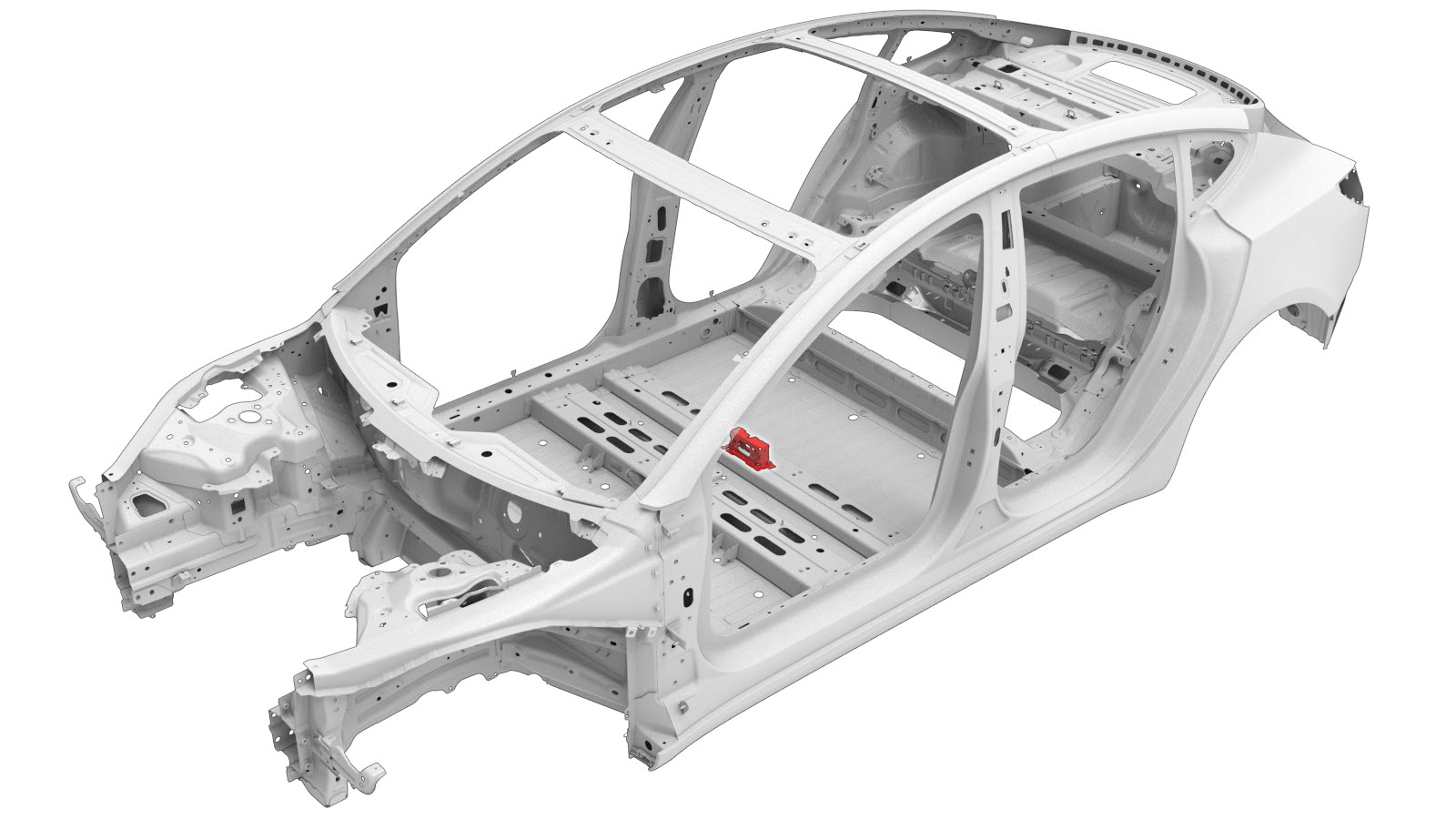

Center Console Bracket (Rear)
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

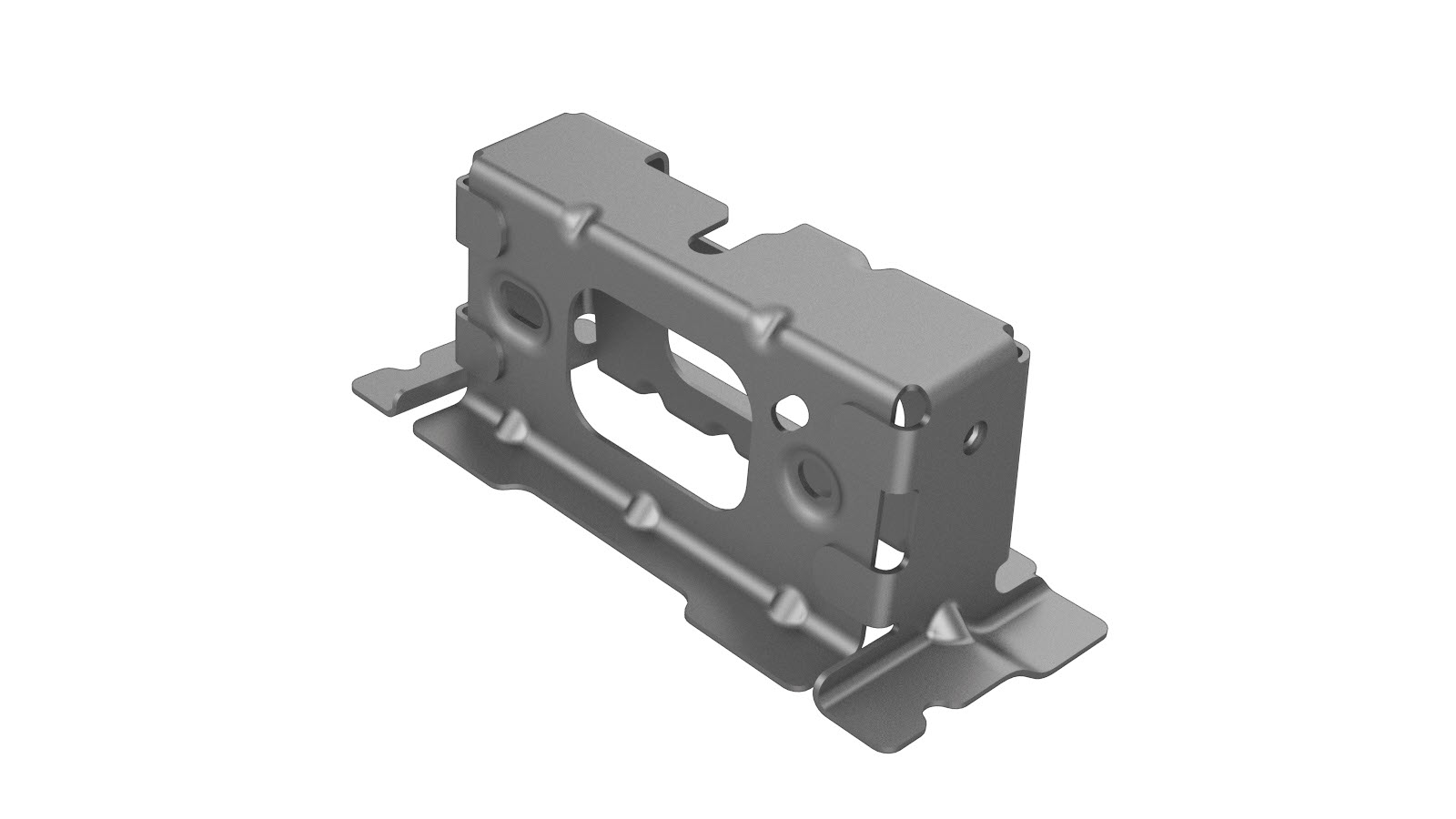

| 1 | BRACKET - CENTER CONSOLE RR (Center Console Bracket – Rear) |
|
| 4 |
High Strength Structural Rivet, 6.5 mm
|
These part numbers were current at the time of publication. Use the revisions listed or later, unless otherwise specified in the Parts Manual.
Repair Procedure
-
Remove the original component.
or
Factory Spot Welds
-
Prepare for installation.

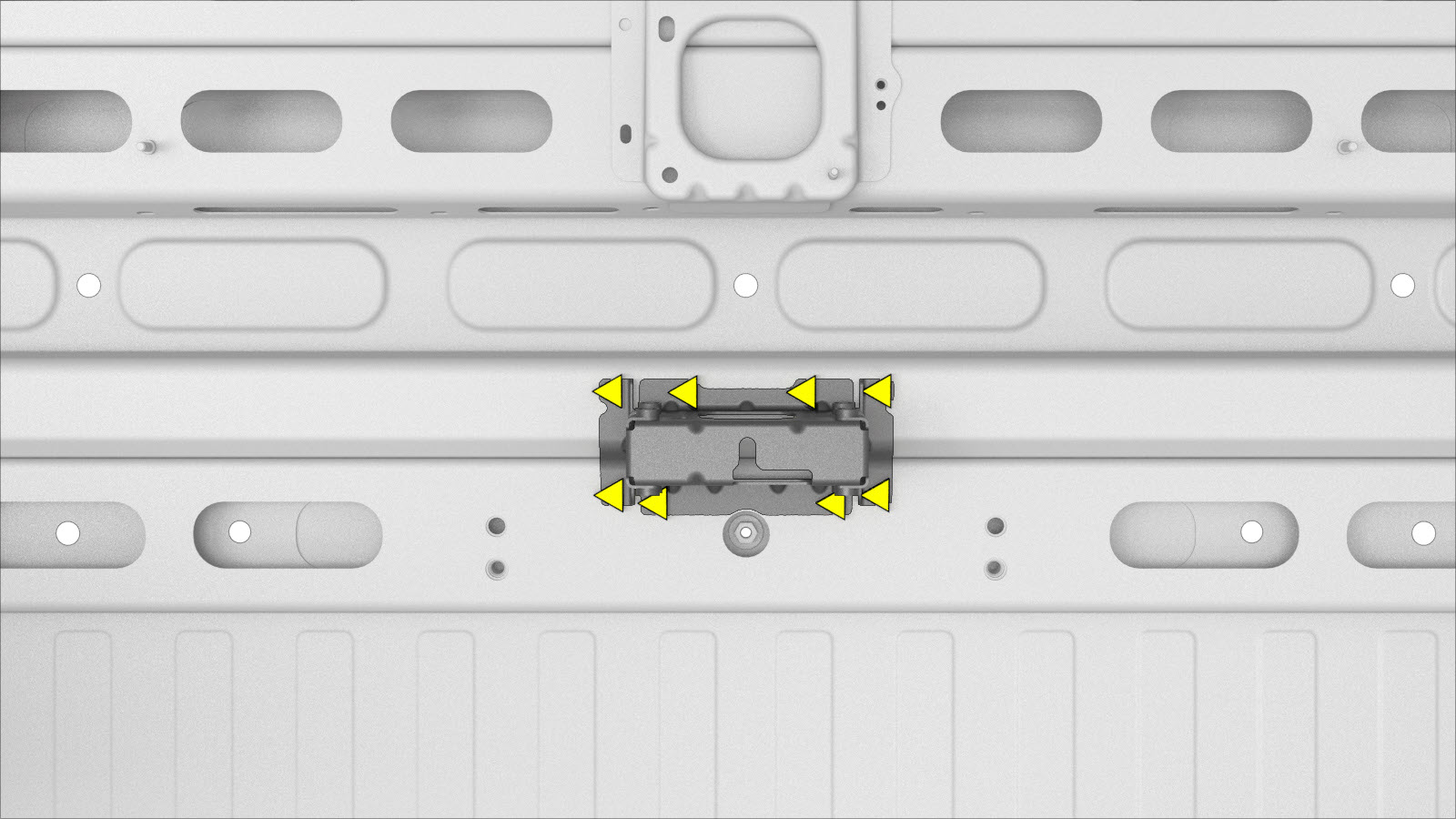

NoteA red X indicates a location where a factory-installed fastener is not being replaced.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
- Perform any necessary post-repair operations.
