Rear Frame Rail to Lower Quarter Extension

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

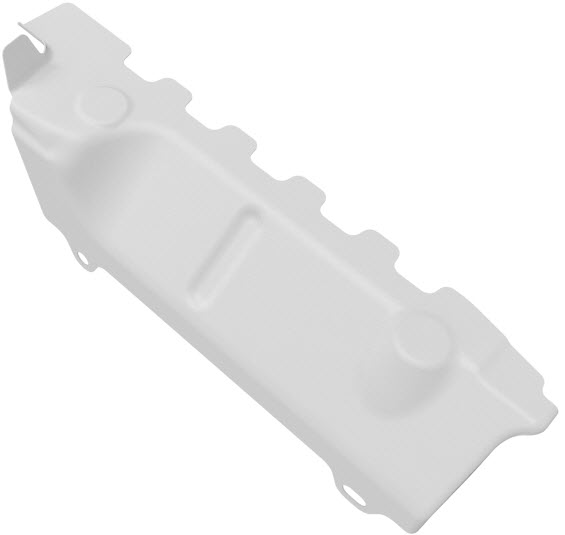

1	M3 Extn-Rail to Rr Qtr Lwr (Rear Frame Rail to Lower Quarter Extension)
11	Rivet, 4.8 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

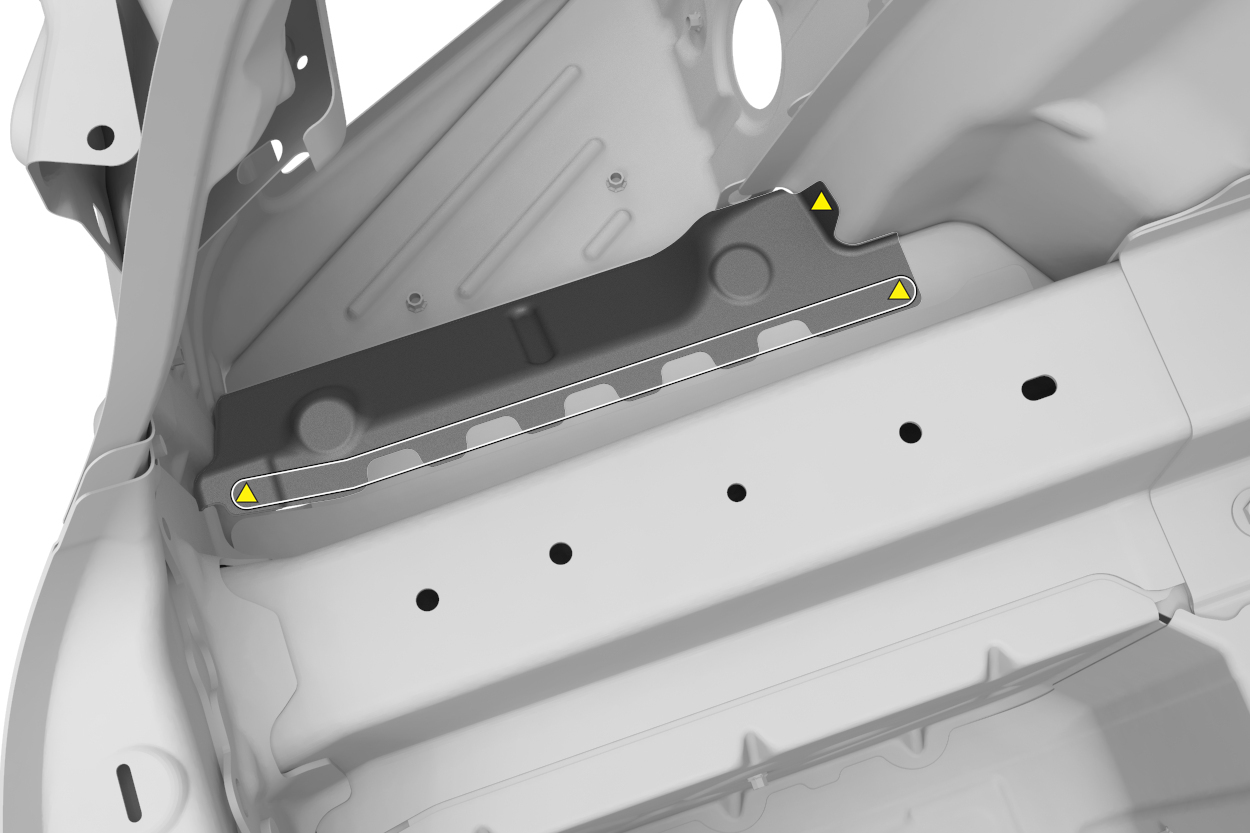

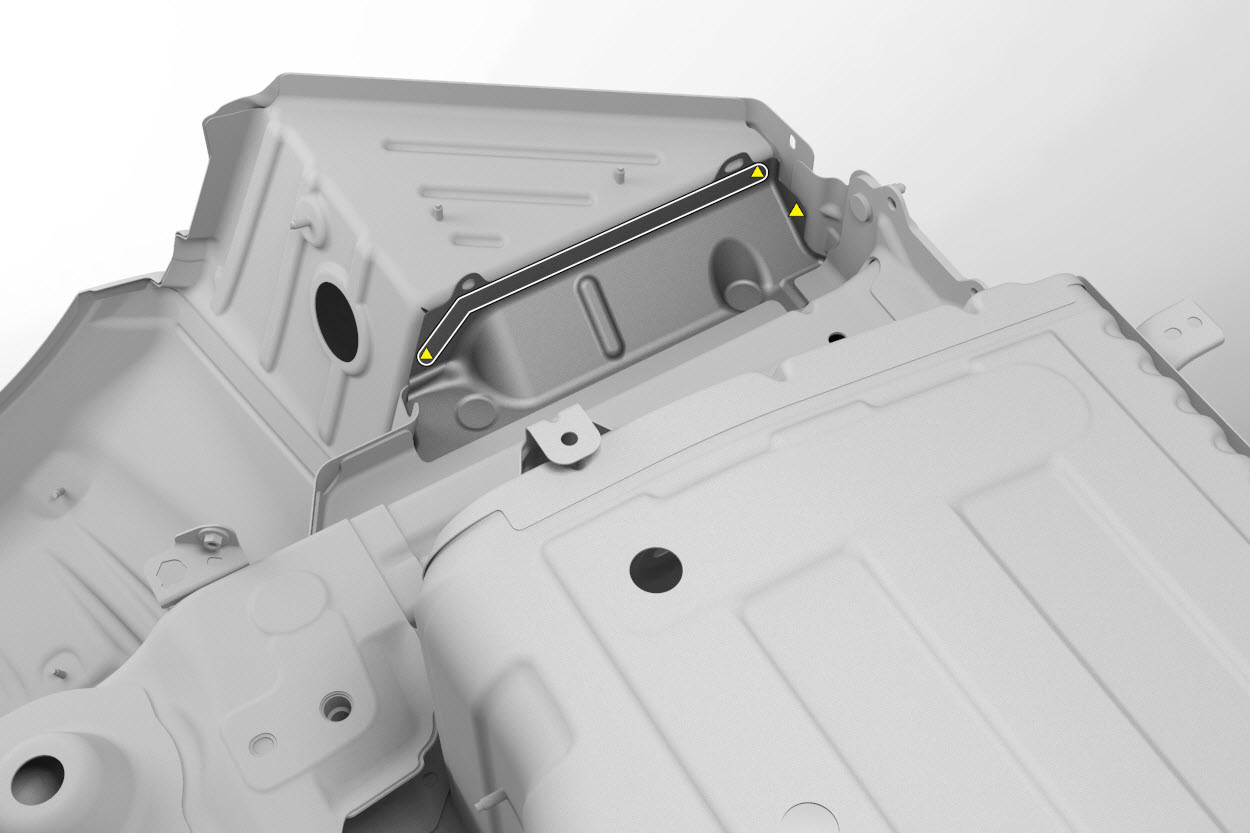

Remove the original component.

or Factory Spot Welds

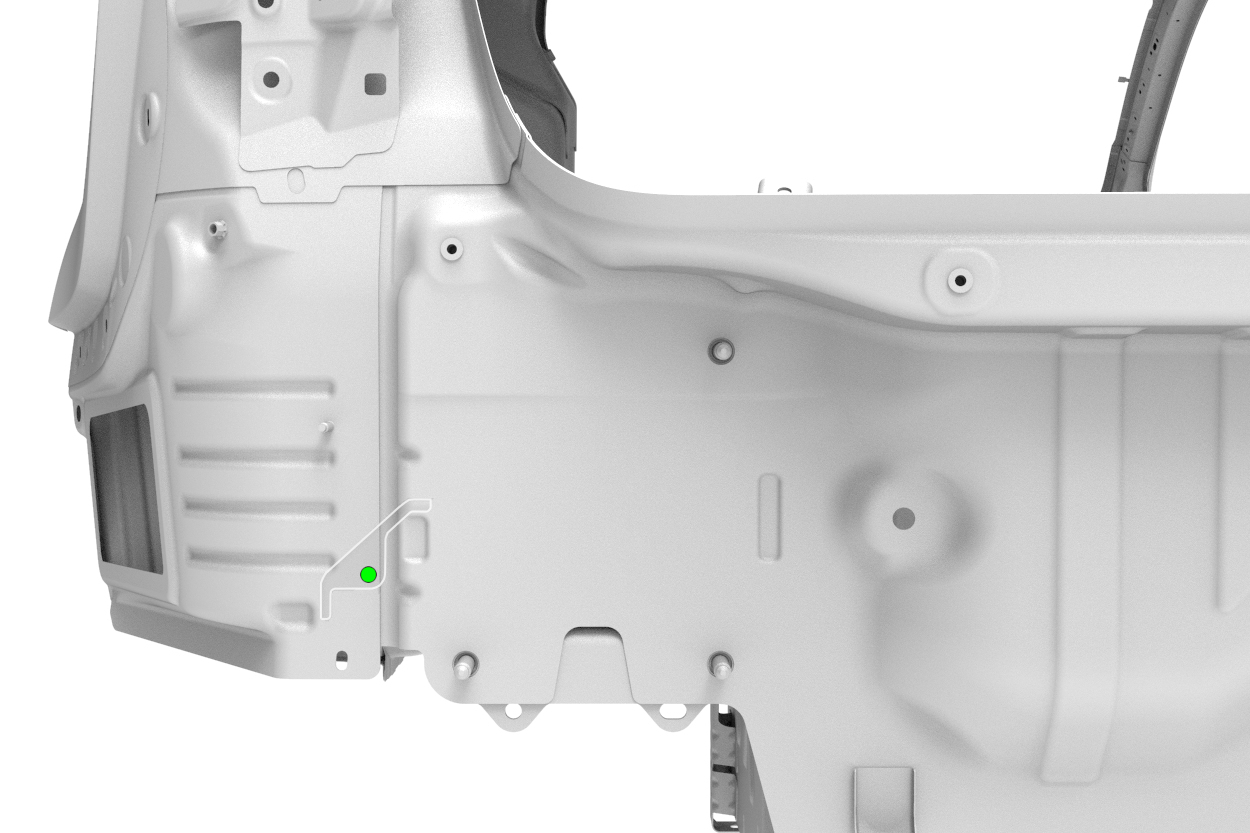

Prepare for installation.

or Rivets, 4.8 mm
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.

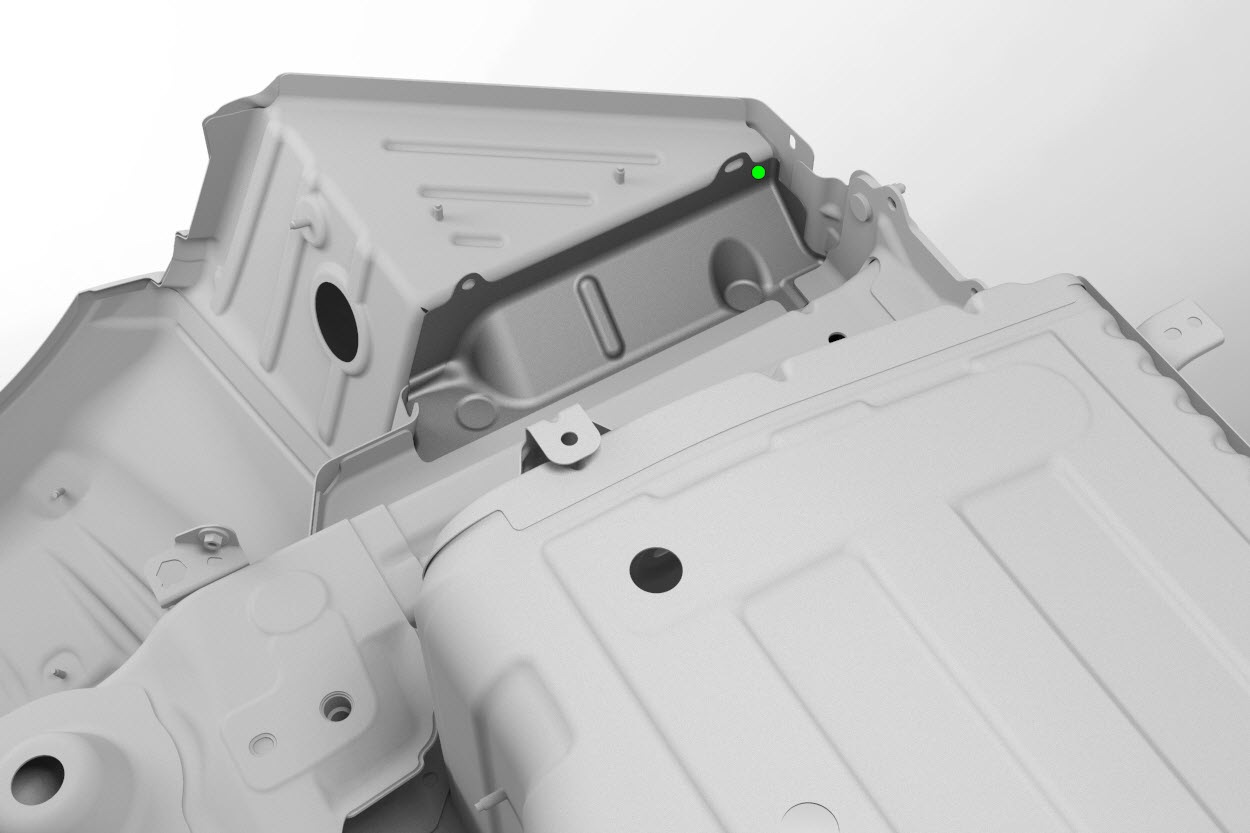

Install the new component or components.
Perform any necessary post-repair operations.
