Rear Subframe Lower Crossmember

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

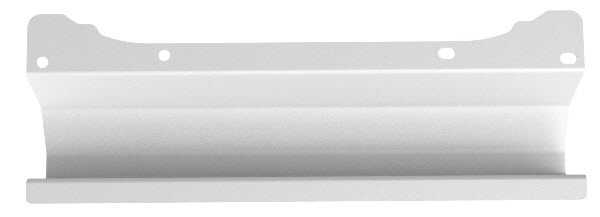

1	Cross Member-Rr Subframe Lower (Rear Subframe Lower Crossmember)
14	High Strength Structural Rivet, 6.5 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

Remove the Rear Subframe Upper Crossmember.
Remove the original component.

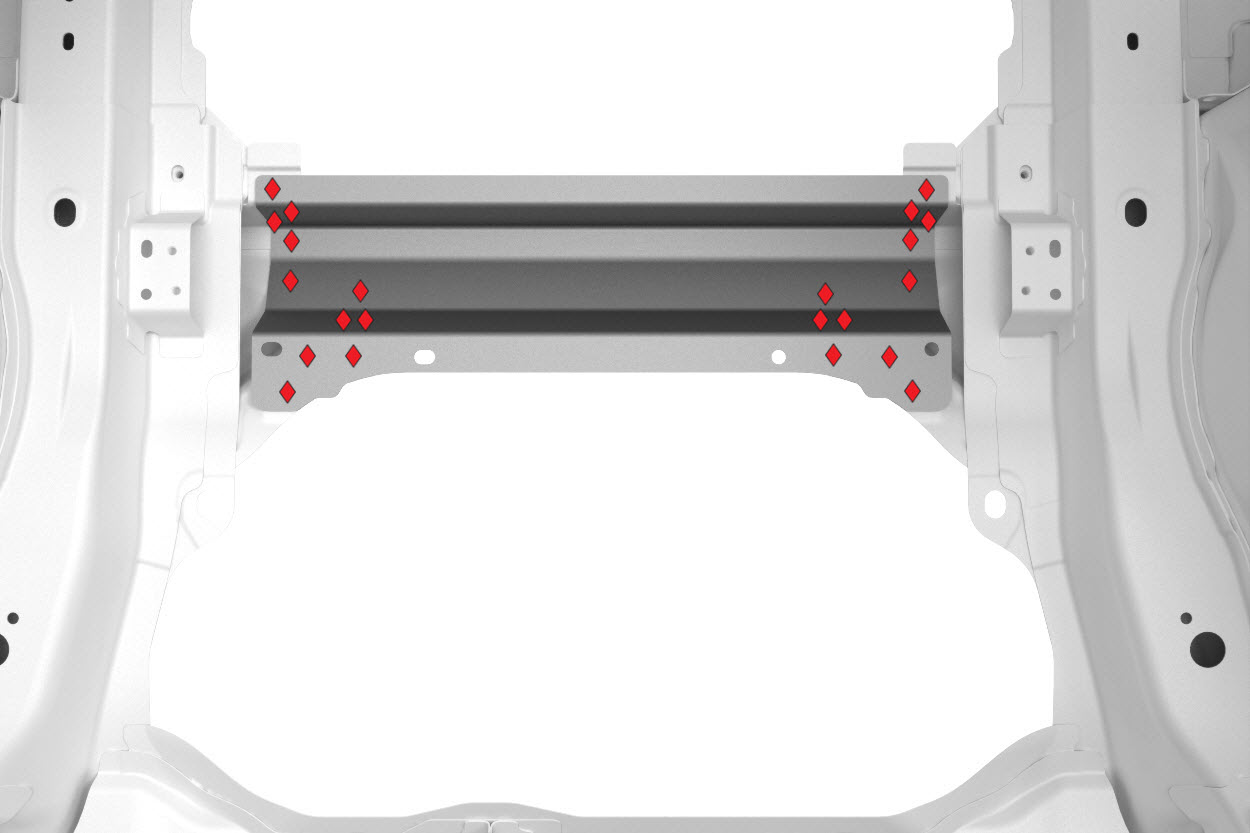

Factory SPR
Prepare for installation.

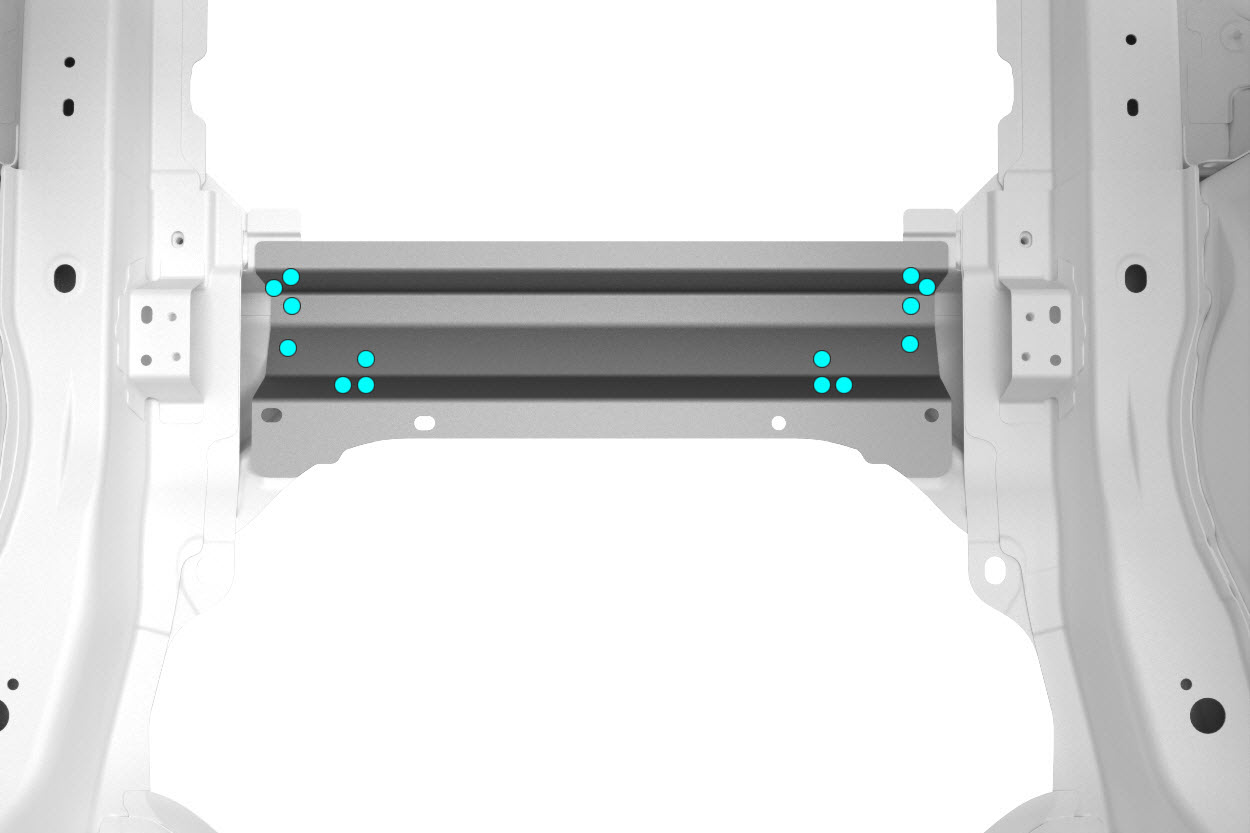

High Strength Structural Rivet, 6.5 mm
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Install the Rear Subframe Upper Crossmember.
Perform any necessary post-repair operations.
