Structural High Voltage Battery Software Management

Last updated: December 11, 2024

Overview

The High Voltage (HV) battery is made of thousands of lithium-ion cells to store energy and provide power to the powertrain and the mid voltage system.

A battery cell does not have an ON/OFF button; it is always ON when connected to a load. Therefore, the HV battery has embedded hardware to manage and control this power in an efficient and safe way. These devices are controlled by extensive software systems to cover situations involving drive, charge, standby, support, and fault states to mitigate unexpected situations.

The ECUs in the High Voltage Controller (HVC) communicate on the vehicle CAN bus or Etherloop to transmit and receive important signals from the power conversion system (PCS), drive inverters, external charging equipment, pedal monitor, gateway, body controls, etc., to allow proper power limits and vehicle behavior.

Battery States

The BMS and other Electronic Control Units (ECUs) in the high voltage controller (HVC) control the battery behavior and typically operate in one of 6 states. The Support and Conditioning are combined in the list below. The BMS receives state request information from the vehicle body control system which tells the BMS whether to enable High Voltage (HV) for drive, support, and charge. Charge requires some extra signals from the car computer. The different BMS states listed below are transmitted on CAN under "HVBATT_systemDirectorState" signal:

1. Drive
2. Charge
3. Support or Conditioning
4. Standby
5. Fault

Note

All key on/off signals are controlled through CAN, with no hardware signals used in this system's design.

Drive

In drive state, HVC allows the powertrain to pull maximum discharge and regenerative/charge power specified for the HV battery according to conditions (cell array temperature, state of charge, brick voltages and more).

For the HVC to transition to drive state, the following conditions must be met:

• Key and driver present
• Pack-contactors - closed
• Proximity is not engaged (no charge equipment connected to the vehicle)
• Enter state - vehicle body controllers requests drive
• Exit state - drive request absent

Charge

The Charge state is enabled when vehicle is connected to an external charging and conditions are met for the HV battery to charge. The external charge power can be from one of many AC charging sources, such as a Universal Mobile Connector (UMC) or Wall Connector. This state monitors temperature and voltage to determine end of charge.

The HVC makes the final call on whether the vehicle can charge. The power conversion system (PCS) is subordinate to the HVC. The HVC takes input from the touchscreen (UI), charge port, and vehicle body controllers in determining when it should enter Charge.

To enter the Charge state, the charge port indicates to the HVC that a cable is connected, and charge power is available. Next, the BMS confirms that HV battery is able to charge, UI charge termination target and the vehicle state of charge (SOC) to decide whether it needs to charge. If charging is required and possible, the BMS requests charge to be enabled from the vehicle body controllers. Lastly, vehicle body controllers confirm the UI request for enabling / disabling Charge and the vehicle state. If both are correct, the vehicle body controllers enable Charge.

The BMS enters the Charge state after the charge port ECU and EVSE have agreed on both sides and starts the charging sequence.

Charge and Fast Charge are combined into one state. The different behaviors are handled by the charge state machine. It is a separate substate machine that only runs when the main state machine is in the Charge state. The HVC close fast charge contactors when relevant.

• Pack-contactors - Closed
• Enter state - BMS sends charge request
• Exit state - BMS terminates charge request

Support or Conditioning

Conditioning is activated for supporting the mid voltage system along with keeping the mid voltage battery charged.

This is done through the power conversion system (PCS). During charge and drive states (pack-contactors closed), the PCS charges the mid voltage battery. However, the mid voltage battery might require support (aka, charging power) at any time (for instance, during a FW update or when vehicle is parked for long period of times)

Hence, the Support state which is specifically intended to charge the mid voltage battery when the pack-contactors would normally be open.

Low and mid voltage battery management is handled by the vehicle body controllers and mid voltage battery vehicle controller (VCLEFT). The vehicle body controllers will command the HVC to close pack-contactors for support.

• Pack-contactors - closed
• Enter state - vehicle body controllers send Support request while monitoring the mid voltage battery
• Exit state- vehicle body controllers terminate the Support signal, or another state such as Drive or Charge is activated

Standby

The Standby state is active when the HV battery is not needed but vehicle is not asleep. The pack-contactors open so the HV battery is isolated from the vehicle and no high voltage is present. Most components are powered via the low or mid voltage battery in Standby mode. Only the high voltage controller (HVC) is directly connected to the high voltage and could still operate without the mid voltage battery (as seen in the Energy Reserve Supply section, the mid voltage battery is needed to power up the HVC and the energy reserve supply).

• Pack-contactors - open
• Enter state - No other state signals are present
• Exit state - Another state signal becomes active

Fault

The High Voltage Controller (HVC) ECU can detect a condition with the HV battery internal vitals and act for vehicle safety and HV battery preservation.

If the condition is detected while pack-contactors are closed, the system responds to limit or stop current operation. There are different levels of alerts which lead to different responses from the system:

• Level 1: The condition requires the system to limit power
  • The HVC sets a power limit (could be either limitation on voltage or current) for another powertrain component to not exceed.
• Level 2: The condition requires the system to gracefully stop current from flowing and the vehicle receiving power
  • The HVC will send an alert requiring all components to stop drawing power.
  • The HVC will then open the pack-contactors once the current is low enough

Note

The pack-contactors cannot be opened under load, as this could result in heat dissipation that could damage other components.

• Level 3: The condition requires the system to immediately stop current flow.
  • The HVC sends an analog signal to the pyro-disconnect that causes the HV loop to open, even under load.

Once the system is in Fault state, alerts will be broadcast over CAN to let the gateway know what self-detected error is preventing the vehicle from entering other states. The contactors are opened during this state.

• Pack-contactors - open
• Enter state - Fault is detected and active
• Exit state - Fault clearing state for the specific fault clears the fault and allows state change

Power Limits and Predictions

The HV battery capability at any given state can be a limiting factor for the performance of the powertrain, when charging or driving. The HVC sets limits and calculates the power available for the powertrain to protect the cells. The HVC sets limits for the cells to not exceed predefined current and voltage limits.

Cell Voltage Limits

HV battery cells should operate within 2.5V to 4.2V to avoid irreversible damage. 100% SOC is at 4.2V and 0% SOC is at 2.9V open circuit voltage.

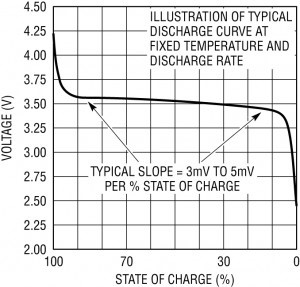

As seen below, the voltage of the cell is stable for most of the SOC band. There is a first sharp voltage decrease from 4.2V to 3.7V (nominal voltage) and then the voltage stays stable to low SOC.

Voltage vs. SOC for lithium ion chemistries

The cells have an internal impedance, or resistance. That resistance causes the voltage across the cell to sag when pulling current from the cell and to increase when pushing current to the cell. The higher the current, the higher the cell voltage will change.

When close to 0% SOC, the voltage drops down quickly and it could be easy to exceed 2.5V, especially from the cell impedance which decreases cell voltage. This is why the HVC will lower discharge power limits when SOC decreases to avoid overshooting the floor voltage, which would damage the cell permanently.

On the other hand, when charging (or during regen), there is a sharp increase close to 100% SOC to 4.2V, and the HVC has to manage charge power limits to make sure the cell voltage does not exceed 4.2V (accounting for cell impedance which increases voltage when cells are charging).

To manage these limitations at high and low SOC, the HVC multiplies those numbers by the number of bricks and defines a high-side pack voltage limit not to exceed (during regen or charging) and a low-side limit not to drop below (during driving or other pack discharge). The drive inverters and chargers will regulate their power to not exceed the voltage limits set by the HVC.

Note

HV battery is unable to restrict power coming in or going out of the HV battery. Pack-contactors operate in a binary state, either fully open or fully closed, with no partial or intermediate positions. It is up to the powertrain (mostly drive inverters and charger) to regulate their power to respect bus voltage limits set by the HVC.

The HVC will lower the max bus voltage the powertrain when reaching high SOC (to avoid going over) and increase the min bus voltage when at low SOC (to avoid going under).

Current Limits

Fixed Current limits: The HVC sets some overall current limits (charge and discharge) to prevent accelerated degradation of the cells. The cells have a small internal resistance: the more current that flows through them, the more they will heat up.

Duration Current limits: The HVC will also limit duration of high discharge currents to protect the system (bus bars, cell interconnects, etc.). This is called the "leaky bucket algorithm". It keeps track of the time when current stays above a certain value and will decrease the current limit after a certain time. It will allow higher current again once the discharge current has been below a threshold for a long enough time.

This algorithm operates like a leaky bucket for electrons continuously receiving a stream of electrons. A constant supply is necessary to keep the bucket filled. If the hole at the bottom (indicating high current) is too large, the bucket empties, requiring a reduction in the hole's size to maintain a proper electron level. The chart below illustrates a section of the algorithm, indicating the reduction in current over time.

Power Prediction

Given all the different limits, the HVC calculates how much power the HV battery will be able to output or take at any given time. The algorithm is complex but considers state of charge (SOC), temperatures, balancing and aging of the bricks, and properties of the charge / discharge of the cells.

The HVC uses the voltage and current limits mentioned above and adds the cell electrochemical characteristics to deduct a max discharge power and min charge power. The following CAN signals are essential to find out what power the HVC was allowing at any given time, as it considers all limits mentioned above:

• BMS_minBusVoltage
• BMS_maxBusVoltage
• BMS_maxChargeCurrent
• BMS_maxRegenPower
• BMS_maxDischargeCurrent
• BMS_maxDischargePower
• BMS_powerLimitsState

Safety Systems to Prevent Cell Damage

The HVC will fault and open pack-contactors if the rest of the powertrain does not meet the limits set by the HVC.

The HVC will open contactors if any of the following exceeds the thresholds set by the HVC:

• Temperature
• Cell voltage (high and low)
• Current (charge or discharge)

The HVC sets limits for HV battery protection at the physical limits of the hardware/cells, and adjusts these limits based on nominal operating conditions to ensure safe operation.

For instance, the HVC implements the hardware over-current (HWOC) behavior, where it has a high fixed threshold which immediately triggers the pyro-disconnect. The HVC over-current behavior integrates I^2t spent outside its advertised limits.

Voltage Sense Harness Impedance

Cell voltages are key to the proper operation of the powertrain. On the HV battery, the system does not have the ability to measure the voltage of each cell. The system can only measure the voltage of a row of cells connected in parallel, also known as a brick.

Brick voltages are used by the HVC to calculate state of charge (SOC, which is used to calculate vehicle driving range), max discharge current, max charge current, HV battery temperature management, and more. Brick voltages are critical for proper vehicle operation. The HVC will request that charge or discharge stop if the brick voltages are, respectively, too high or too low.

Therefore, it is necessary to make sure that the harness between the bricks and battery monitoring board (BMB, where the voltage is converted into a digital number) is in good shape. To make sure, the HVC can perform a sanity check of individual connections between BMBs and bricks. This test is called a voltage sense harness (VSH) impedance test.

The test is simple. The HVC requests the BMBs to close their bleed field-effect transistors (FETs) across each brick, placing a small resistor across the brick. This creates a small load across the brick. The HVC calculates the voltage difference with and without the bleed resistor. If the voltage drop exceeds 150mV, indicating added resistance on the voltage sense harness (VSH) between the brick and the BMB, the HVC raises a high VSH impedance alert, stopping charge and support. In Drive, an alert for "Car May Not Restart" appears. After the drive, contactors open, making the vehicle unresponsive.

The HVC runs the VSH impedance test on all 110 bricks every 24 hours, or every time the HVC wakes up from sleep if the previous VSH impedance test was not complete.

If the VSH impedance test reveals high impedance, it means inaccurate voltage measurements are possible, so the HVC therefore prevents contactors from closing.

Precharge

The drive inverters embed big capacitors. Any capacitor is like a strong magnet for electrons or current. If empty and exposed to a current, it will suck in current at a high rate.

This is why the pack-contactors cannot close directly on the HV bus:

• The capacitors in the drive inverters would suck in huge amounts of current and cause several thousands of amps to rush through the contacts bar for the pack-contactors.
• This would cause arcing, potential failure of the pack-contactors, and damage to the powertrain from the high inrush current.

To avoid this issue, there is a precharge sequence that allows for gradual charging of those capacitors.

There is no precharge relay or resistor. The precharge uses the mid-voltage battery and the power conversion system (PCS) to step up the voltage from the mid-voltage battery to match the HV battery voltage. The PCS becomes a key component in closing pack-contactors.

• Step 1:
  • The HVC sends the request to close pack-contactors to the dedicated processor handling contactor drive power ( high voltage monitor HVMON ).
  • The high voltage monitor HVMON powers up the PCS via a dedicated hardware line.
  • The high voltage monitor HVMON sends the precharge request to the PCS.
  • The high voltage monitor HVMON sends a precharge voltage target to the PCS according to pack voltage (which the high voltage monitor HVMON is sensing directly).
  • The high voltage monitor HVMON sends a DCDC PWM enable signal (hardware line) to the PCS.
• Steps 2 and 3:
  • The PCS takes the mid voltage input power from the mid voltage battery and steps it up to the requested voltage sent by the high voltage monitor HVMON . Pack-contactors are still open. This causes the capacitors of the drive unit to charge up and the bus voltage to rise up to match the pack voltage.
  • The PCS sends a signal to the high voltage monitor HVMON with the precharge status (FAILED, IDLE, PRECHARGING).
• Step 4:
  • Once the high voltage monitor HVMON senses that the DC link voltage is close enough to the pack voltage, it closes the positive pack-contactor.
  • Once the positive pack-contactor is closed, the HVC confirms voltage on each side to make sure it is actually closed. It will also confirm the coil current to make sure that enough current was consumed to close the pack-contactor.
• Step 5:
  • From there, the HVC closes the negative switch and operates the same check as for the positive one, voltage and coil current.
  • Before sending the green light to pull power from the HV battery, the HVC will confirm the common mode between DC link plus to chassis and DC link minus to chassis. If that is within expected range, the HVC will send the HVC the green light to draw power from the HV battery.

Precharge sequence

With one DCDC always powered on the HV battery side, the HV battery can provide the necessary power to precharge the DC link bus. If the MV battery is over-discharged or unavailable, the HV battery can self-sufficiently precharge. The always ON DCDC of PCS2 provides MV power to step up to the pack voltage on the DC link bus.

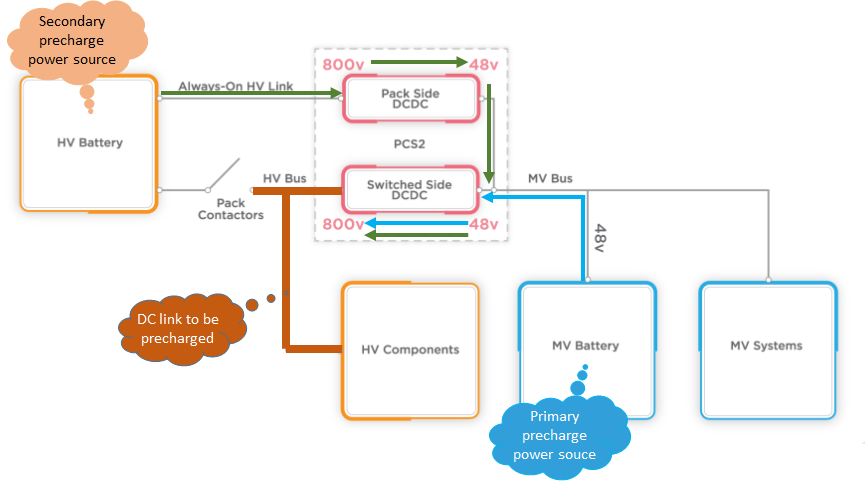

The schematic below represents the 2 different precharge sequence possible:

• The primary one in light blue using the mid voltage battery as power source (which is the process explained above)
• The secondary one in green using the HV battery and unswitched DCDC as mid voltage power source

Precharge sequence

High Voltage Interlock Loop

Overview of High Voltage Interlock Loop

The High Voltage Interlock Loop (HVIL) is a system that ensures all HV connectors are connected before closing contactors. This prevents the HV battery from closing contactors when an HV connector is disconnected, which could expose someone to high voltage.

DC Link voltage is required to be below 60V one second after the HV connector was disconnected. This requirement is met using HVIL to trigger the drive inverters active discharge resistors to reduce the bus voltage when a HV connector is disconnected.

Tesla vehicles can implement two different types of HVIL :

• High Voltage Interlock Loop over Controller Area Network (HVIL over CAN)
• High Voltage Interlock Loop over Low Voltage (HVIL over LV)

This vehicle uses HVIL over CAN.

High Voltage Interlock Loop Over Low Voltage

HVIL is an electric signal routing through most high voltage (HV) components and HV connectors in the vehicle. The HVC produces a constant 20mA current on the output of the HVIL loop which comes back into the HVC. If the HVC does not detect 20mA, it assumes the HVIL loop is open, suggesting a disconnected or insecurely connected HV connector. Some HV components have a 60ohms resistor between their HVIL input and output, and those components are called HVIL nodes.

High Voltage Interlock Loop Over Controller Area Network

HVIL over CAN is based on the same fundamental principles as HVIL over LV. However, certain high-voltage components are not directly connected to the HVIL electrical loop. Instead, these components are designed with the capability to self-detect their HVIL status, specifically whether their high-voltage connector is present. This status information is then transmitted to the high voltage controller via the CAN network.

Operation

The HVIL system is configured into three sub-loops, each of which is powered by the same current source provided by the High Voltage Controller (HVC). Additionally, a separate loop is dedicated to the charge port, which operates independently of the three main sub-loops.

• HVIL Internal to the Ancillary Bay (referred to as 'Internal loop'): Starts from HVC low voltage connector to FDU connector in the ancillary bay, to the RDU in the ancillary bay, to the cabin heater and compressor connector in the ancillary bay, and back to the HVC low voltage connector. This loop does not exist for this platform. There is no HVIL sensing at the HV battery connector. For more details, refer to the HV Exposure Detection section.
• HVIL for vehicle powertrain (referred to as 'Vehicle loop'): This loop does not exist for HVIL over CAN implementation. The input and output are shorted together on the HVC. It is replaced by HV components reporting their HVIL status over CAN.
• HVIL for Ancillary Bay Lid (referred to as 'Ancillary bay cover loop'): This loop does not exist for this platform as the ancillary cover is not accessible from the cabin without specific tooling.
• CPIL for charge port connector: Starts from HVC low voltage connector to the charge port connector in the ancillary bay, and back to the HVC low voltage connector.

The HVIL vehicle loop for HVIL over CAN relies on the high voltage components to report their HVIL status via CAN to the HVC. It is a significant improvement compared to HVIL over low voltage wiring which relies on an electrical signal traveling from the HVC, around all the vehicle to each high voltage component before coming back to the HVC which validates that the loop is not open.

Here are some of the benefits of HVIL over CAN compared to HVIL over LV:

• It allows reduction of physical HVIL electrical connections in the vehicle. The more HVIL electrical connections in the vehicle, the more chance of an increase in resistance that could cause a false positive HVIL alert (false HVIL status open, which would prevent contactors from closing when no HV connector is disconnected).

There are also a few challenges with HVIL over CAN architecture, mostly:

1. If a HV component is MIA, contactors will not be able to close.
   • This means that if a HV component is not powered, there will be an HVIL fault.
   • This can be confusing, as HV component can be powered by a vehicle controller and an issue with that vehicle controller can lead to an HVIL fault.
   • For instance, see example below where a vehicle controller (VCLEFT) failure leads to HVIL fault:
     • VCLEFTfailure -> no low voltage power to front drive inverter -> no HVIL status from front drive inverter -> HVIL fault -> contactors do not close.
2. When contactors are closed, drive inverters have to stay powered and running.
   • This means increased energy consumption for any state when contactors are closed but vehicle is not in Drive (Sentry Mode, preconditioning, charging, etc.).
3. It creates more strain on the mid voltage battery during firmware updates.
   • With HVIL over CAN, contactors cannot be closed when updating the drive inverters. By contrast, they can be closed with a wired HVIL.

The HVIL over CAN system covers the compressor and all drive inverters of the vehicle. Depending on the vehicle configuration, there is a different number of ECUs reporting HVIL status over CAN:

• For a 2WD configuration, 2 ECUs report HVIL status: The HV A/C compressor and the drive inverter.
• For an AWD / tri-motor configuration, 4 ECUs report HVIL status: The HV A/C compressor and the 3 drive inverters.

The following figure shows the physical HVIL connection at the drive inverters and HV A/C compressor in red. These connections are monitored and reported closed or open by the relevant ECU and reported over CAN to the HVC.

Tri-motor configuration HVIL diagram

HVIL for Charge Port Connection to the HV Battery

The HVC has a separate sense circuit to confirm that the charge port is connected to the vehicle at the HV battery. It is called the charge port interlock loop (CPIL).

• If no charge port is connected, the system will allow contactors to close but will prevent fast charge and charge.
• CPIL starts from HVC low voltage connector, goes to the charge port connector in the ancillary bay, and then returns to the HVC low voltage connector.

Note

In the first weeks of production, Cybertruck HV battery was not equipped with Charge Port (CP) HVIL (known as Charge Port Interlock Loop (CPIL)) on the charge inlet connection at the Cybertruck HV battery. CPIL was introduced in 2024.

System Detection Mechanism for HVIL Open

Specifics of HVIL over CAN

The drive inverters report their HVIL status to the HVC / HV distribution management block over CAN. For redundancy, each drive unit has the pedal monitor (PM) and drive inverter (DI) report its HVIL status individually over independent private CAN buses to the primary DI (located in the left vehicle controller).

The primary DI aggregates these HVIL statuses from each DI and PM and sends a single HVIL status signal to the HVC / HV distribution management block indicating whether HVIL at DI is closed, open, or none (missing).

This setup makes the HVC agnostic to the DI configuration of the vehicle (2 or 3 DIs), as the primary DI manages it and sets the primary inverter HVIL status accordingly. The primary DI sends the aggregated HVIL statuses to the HVC and HVC / HV distribution management block.

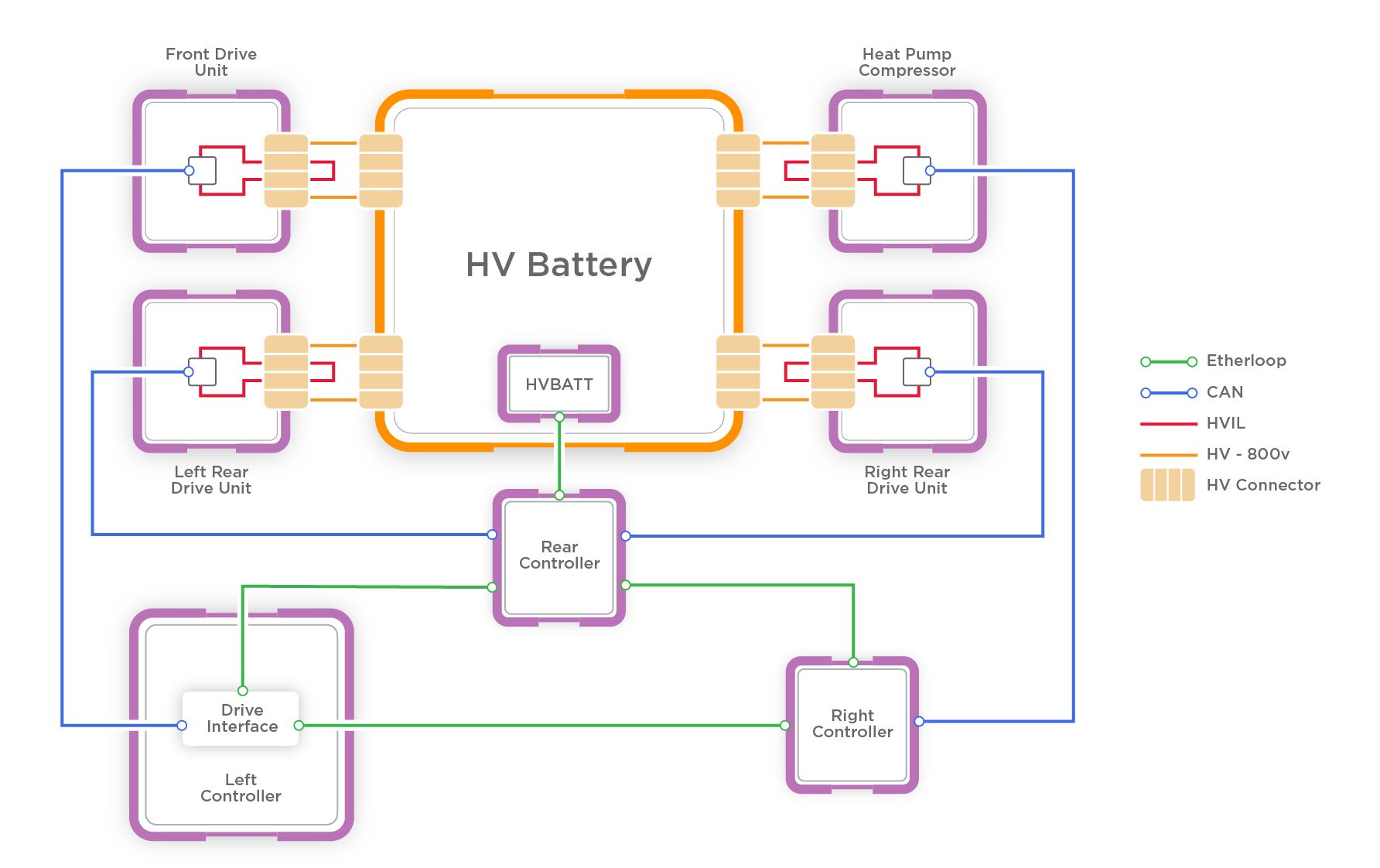

See the diagram below that illustrates HVIL status flow over CAN:

1. Rear drive units sense their own HVIL 2. Front drive unit senses its own HVIL 3. Compressor senses its own 4. DI aggregates HVIL statuses from all inverters and sends its HVIL status over private CAN to primary DI (via signal DIx_hvilStatus) 5. PM aggregates HVIL statuses from all pedal monitors and sends its HVIL status over private CAN to primary DI (via signal PMx_hvilStatus) 6. HVBATT receives PMs and DIs HVIL status, computes it to get final HVIL status 7. HVBATT HVIL monitor allows energizing contactor is HVIL is closed.
Cybertruck HVIL diagram

An important part of HVIL is also to command the drive inverters (DIs) to enable their active discharge resistors when contactors open.

This HVIL over CAN system cannot rely on an HVIL voltage drop at the DIs to enable active discharge resistors. Instead, when the HVC reports HVIL status as not OK, the DIs will enable their active discharge resistors.

Also, while their active discharge is ON, the DIs lose their ability to get HVIL status: thus, it becomes impossible to close contactors again. To get around this, every 500 millisecond the active discharge is stopped for 10 milliseconds, and HVIL is tested again to see if it is closed.

HVIL Sensing Inside the Drive Inverters:

The drive inverters are built to handle both types of HVIL:

• HVIL over CAN (like for Cybertruck, Model S and X (2021+) Model S / Model X vehicles)
• HVIL over low voltage (present on Model S (2012-2020), Model X (2015-2020), Model 3 (2017-2023), and Model Y)

The inverter generates a small current which travels through the inverter connector to the harness-side connector which shorts the HVIL circuit back to the inverter PCBA. See the following:

HVIL from and to the drive inverter PCBA though the HV connection

The drive inverters feature hardware that enable switching between HVIL over CAN and HVIL over LV. The diagram below shows the internal drive inverter electronics involved in HVIL sensing.

• The green loop is HVIL over low voltage.
• The red loop is HVIL over CAN.

The drive inverter looks at the configuration numberOfHvilNodes. If it equals 0 (zero), it will use the HVIL over CAN. If it does not equal 0 (nonzero value), it will use the HVIL over low voltage.

• For HVIL over CAN (numberOfHvilNodes=0):
  • The drive inverter closes the two field-effect transistors (FETs) indicated in the diagram below (items 4 and 5).
  • This puts inline a 3.3V power supply that generates 20mA on the HVIL loop marked in red on the diagram (HVIL over CAN).
• For HVIL over low voltage (numberOfHvilNodes≠0):
  • The two FETs stay open and the HVIL loop becomes the green loop (HVIL over low voltage).
  • The 20mA is now supplied externally to the drive inverter: it enters the loop from HVIL_IN (item 7) and goes back out via HVIL_OUT (item 8).

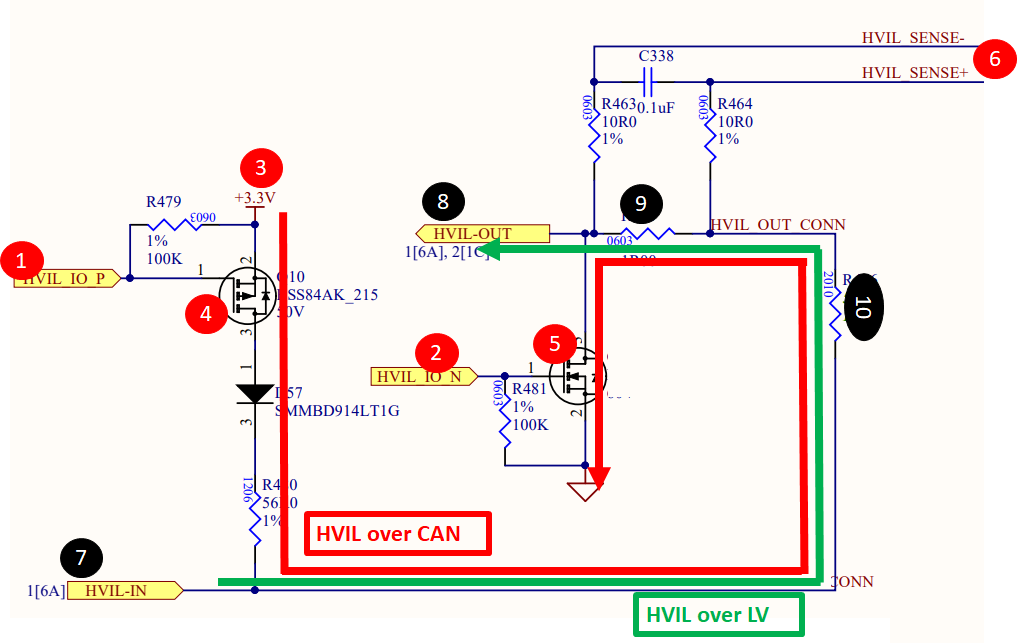

The diagram below shows the internal drive inverter electronics involved in HVIL sensing.

1. Base of first FET to control its open / closed state (closed for HVIL over CAN) 2. Base of second FET to control its open / closed state (closed for HVIL over CAN) 3. Voltage power supply for HVIL over CAN 4. First FET (closed for HVIL over CAN) 5. Second FET (closed for HVIL over CAN) 6. HVIL over CAN sense for HVIL over CAN 7. HVIL input from external HVIL loop for HVIL over low voltage 8. HVIL output to external HVIL loop for HVIL over low voltage 9 and 10. Resistors in series to create HVIL voltage across 60 ohm
HVIL circuitry in Drive inverter to accommodate HVIL over CAN and HVIL over low voltage

Warning

From the diagram above, it should be apparent that if the drive inverter is set up for HVIL over CAN, any voltage on HVIL_in or HVIL_out would impact the HVIL sense voltage. This means that HVIL_in and HVIL_Out should NOT be populated for any HVIL over CAN vehicle.

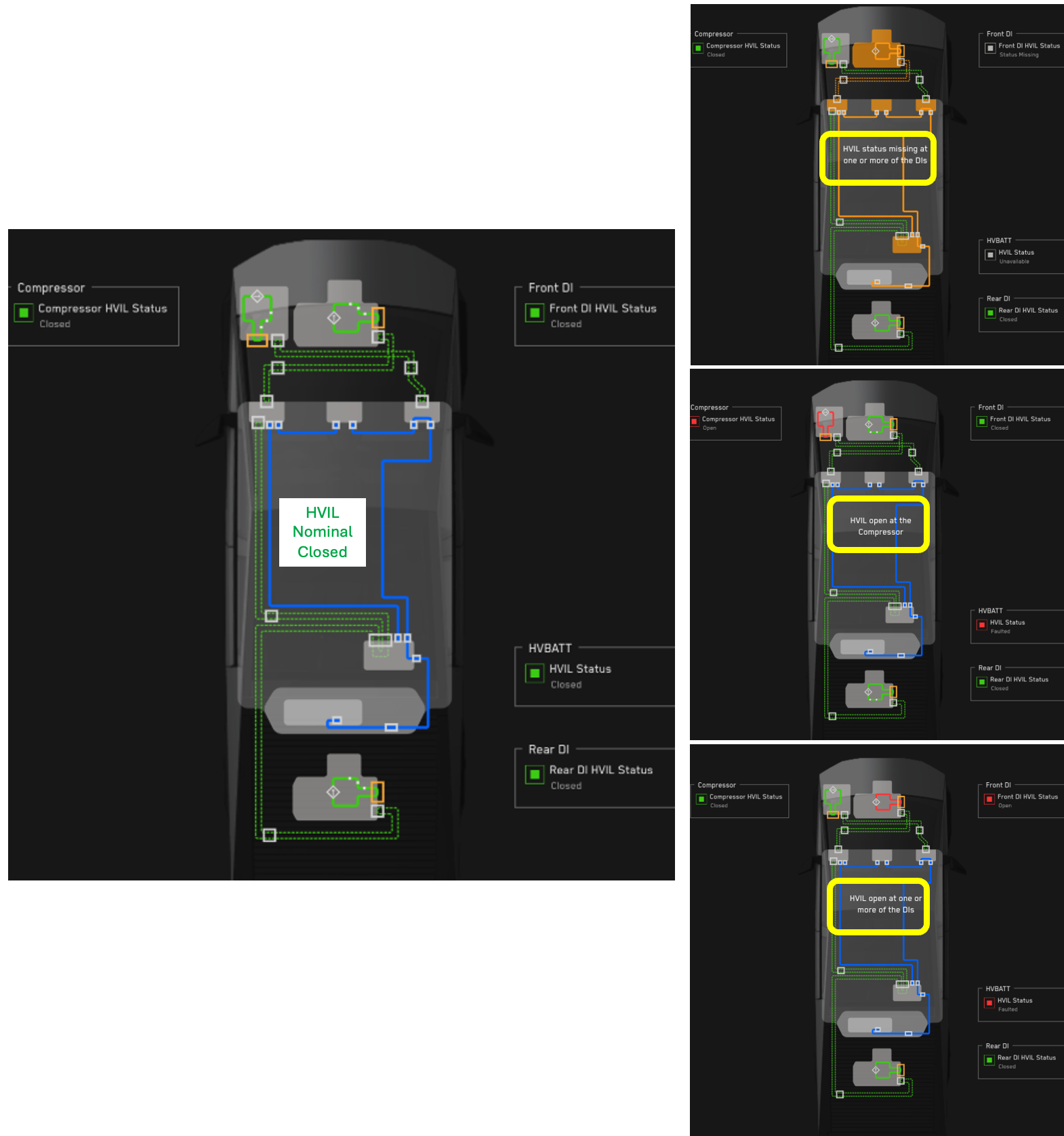

Diagnostic of the High Voltage Interlock Loop

See the Service Mode Plus section for more details on the HVIL panels and how they can help with HVIL diagnostic.

High Voltage Exposure Detection

The absence of the HVIL sensing on the HV connectors at the HV battery does not allow HVC to use HVIL to sense unexpected disconnection of one of those connectors. Therefore, contactors cannot be opened in support or charge, nor an alert can be displayed to the user driving that the vehicle may not restart. To achieve detection of disconnection of HV connector from the HV battery, HVC relies on a feature called High Voltage Exposure Detection (HVED).

HVED is carried out by HVC which constantly monitors via CAN the voltage reported by the HV Components and triggers an alert when one of those dips below a certain threshold.

The alert, HVC_a045_BatteryHvConnectorFault, triggers a customer facing message "Car May Not Restart" and opens the contactors if a vehicle is charging on in support. In drive, it will not open contactors until the vehicle's gear is in PARK.

The HVED is also used during precharge to ensure that no HV connectors are disconnected during precharge.

High Voltage Isolation from Chassis

Isolation is the resistance between high voltage (+ or -) and the vehicle frame ground (chassis).

The high voltage electrical system is isolated from the vehicle. This means that there is no (or extremely little) electrical current carrying path between the vehicle and any high voltage conductor. To ensure that this isolation is always met, a monitor is installed in the battery, which periodically measures the resistance between the high voltage conductors and the chassis.

To run the test, the HVC employs two 10 Mohms resistors: one connecting the HV battery enclosure (chassis) to the HV battery positive, and another connecting the HV battery negative to chassis, allowing the high voltage 0V to be close to chassis potential. For example, consider two rubber bands, one attached to each end (HV battery+ and HV battery-) and anchored at the midpoint (0V). When the rubber bands are identical in strength (equal resistance), they keep the 0V position close to the center (chassis).

The HVC also has two resistors of 6 Mohms between chassis and HV battery- and between chassis and HV battery+. The resistors are in series with FET transistors that allow for connecting and disconnecting the resistor from the circuit. The isolation test resistors are located inside of the pack-contactors.

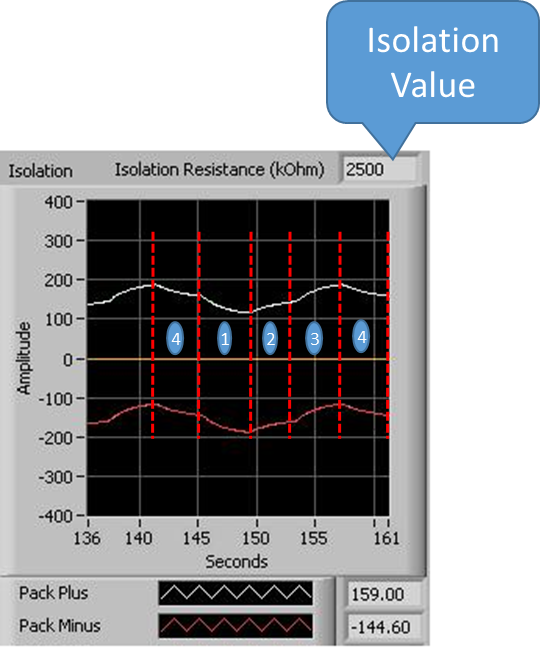

The measurement of isolation from the HVC test has several steps:

1. The HVC closes the positive FET transistor and brings the 6 Mohms resistor in parallel to the 10 Mohms resistor between chassis and HV battery+. The resistance is now 3.75 Mohms. The rubber band on that side now has less resistance, and it causes HV battery+ to come closer to the chassis, which pushes HV battery- away from it. The HVC holds this for 4 seconds to give time for HV battery+ and HV battery- to move down.
2. The HVC opens the positive FET for 4 seconds, which causes HV battery+ and HV battery- to come back up to a middle level.
3. The HVC closes the negative FET transistor and brings the 6 Mohms resistor in parallel to the 10Mohms resistor between chassis and HV battery-. The resistance is now 3.75Mohms. The rubber band on that side is now weaker (less resistance), and it causes HV battery- to come closer to the chassis, which pushes HV battery+ away from it. The HVC holds this for 4 seconds to give time for HV battery+ and HV battery- to move up.
4. Then, The HVC opens the negative FET for 4 seconds, which causes HV battery+ and HV battery- to come back up to a middle level.

The HVC measures the voltage on position high and low and deducts the resistance between chassis and the HV battery. The cycle can then start again from step 1.

In the event of an isolation issue, additional resistance runs parallel to the 10 Mohms and 6 Mohms resistors. The more the isolation degrades, the lower this resistance becomes. That resistance will cause the 10 Mohms and the 6 Mohms resistors to be obsolete, as all the current will pass through the new resistance caused by the isolation degradation. This will cause HV battery+ and HV battery- to not move as expected: the rubber band is weakened, and the HV battery voltage is pulled significantly on the other side. The HVC would detect HV battery voltages at unexpected positions, leading to low isolation readings. If isolation falls below 500 Ohm/Volt or 192 Kohms at 385V, the HVC will report an alert, notifying the customer of a potential issue.

Forced External Isolation Measurement

Isolation resistors are before pack-contactors. This means that the system is unable to measure isolation after pack-contactors (or outside the HV battery) if the pack-contactors are opened. If the HVC detects low isolation with pack-contactors closed, and it restores when they're open, the HVC won't know if external isolation is restored when closing pack-contactors again. Therefore, the HVC will need to run a forced external isolation measurement (FEIM) that will allow it to get an isolation measurement without closing pack-contactors.

With a PCS, the DC link voltage can be increased independently using the step-up DCDC, which converts mid voltage battery power to high voltage (350+ V). To perform FEIM, the HVC asks the PCS to precharge the bus to pack voltage, and then takes an isolation measurement when the DC link voltage is near pack voltage.

Consequence for vehicle behavior of an isolation alert:

• If the vehicle is in Standby, Support, or Charge mode, the failure is reported as a fault. The vehicle opens contactors or keeps them open. Charge or Support will stop.
• If the vehicle is in Drive, the failure is reported as a warning, but does not open the contactors to prevent a loss of drive. The vehicle will not be able to restart if the isolation problem is still present. If the HVC detects low isolation during a drive, it will raise an internal flag and perform a forced external isolation measurement when closing the contactors again. If isolation is not restored, contactors will not close. As a result, the vehicle will not be drivable, and it could become unresponsive as the mid voltage battery degrades.

Conditions that can cause low isolation from high voltage to chassis:

• Physical condition of the insulation material
• Contamination (dust, bolts, etc.)
• Moisture (water ingress, internal coolant leak, etc.)

Battery Capacity and Range Calculations

The range of the vehicle, typically displayed in miles or kilometers, is a function of many parameters in the vehicle to provide the most accurate assessment of range remaining. This is to prevent the customer from running out of charge prematurely. The voltage of the HV battery is directly correlated to the state of charge (SOC) of the vehicle. This is indicated by a bar on the touchscreen (UI). However, the capacity of the HV battery changes over time, which means 100% SOC will always be 100% but the range can change based on the battery capacity. The capacity is tracked by the HVC in a value called calculated amp-hour capacity (CAC).

Range Estimation

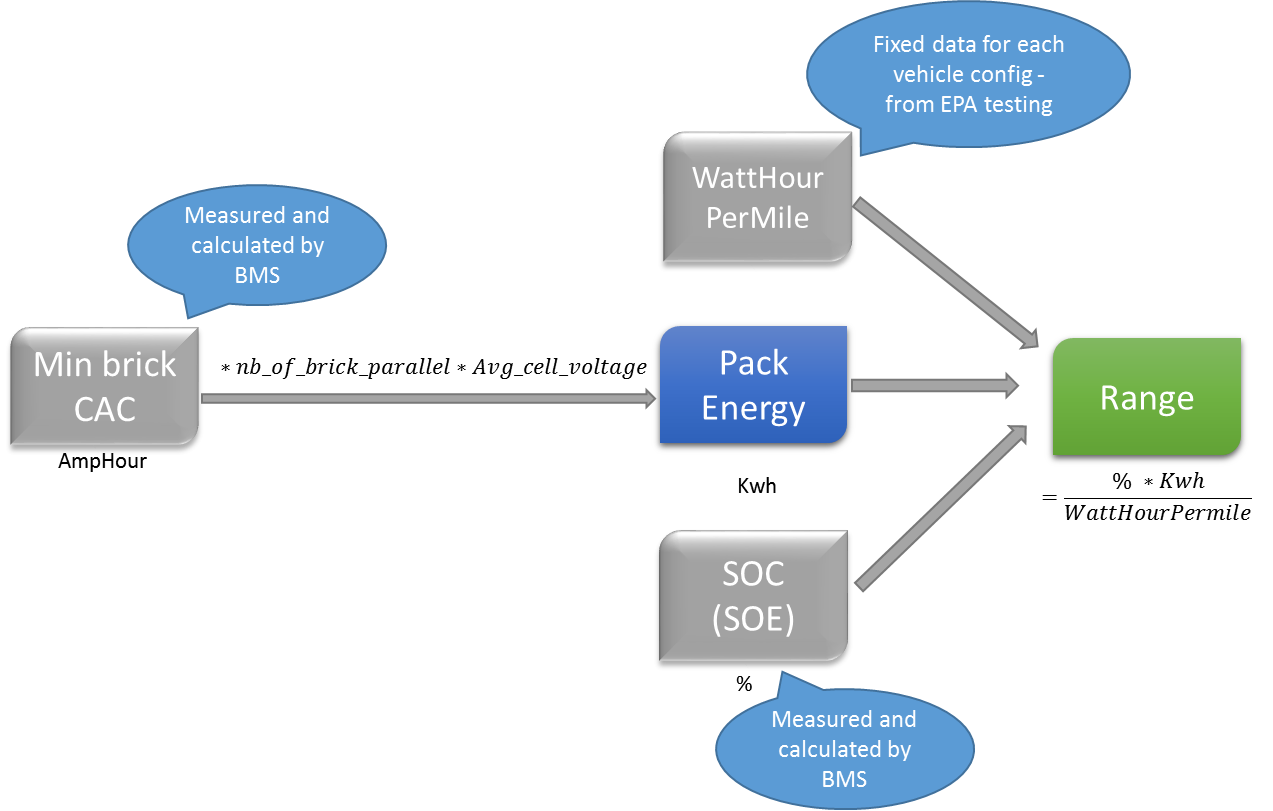

The range calculation can be shown using the flowchart below.

Starting from left to right, the first important number that comes into the equation is CAC. This number can be viewed in logs and is constantly changing from high voltage battery management system calculations to update the value to reflect energy capabilities in the HV battery.

Note

This value is the Ah capacity for a single brick. All bricks have their capacities calculated, but the minimum brick is used for the range calculation, as it is the brick that will limit the HV battery capacity.

To get the full capacity of the entire battery, the value will need to be multiplied by the average brick voltage to determine the kWh value.

Note

Temperature affects the full HV battery energy, with a cold HV battery having reduced energy capacity compared to a warmer one.

The full HV battery energy is multiplied by the state of charge (SOC) of the HV battery. Therefore 50% SOC means .5 (or half) of the full HV battery energy.

The energy is then divided by a fixed watt-hour per mile value, which is pre-programmed into the HV battery based on the vehicle's rated range and configuration settings. This is the average efficiency found during EPA drive cycle testing (or equivalent regional standard). The final number will appear in units of distance, and this is what is displayed on the touchscreen.

Capacity Specifications

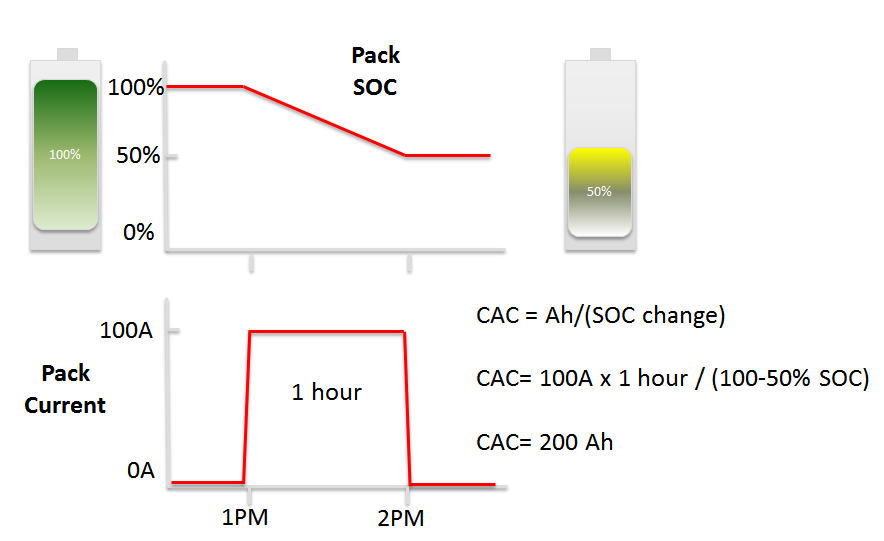

The capacity of the HV battery has a direct correlation to the final range displayed to the customer. Calculated amp-hour capacity (CAC) is calculated by the high voltage battery management system by monitoring voltage change as well as current leaving and entering the HV battery. The simplified CAC calculation is indicated in the diagram below:

The shunt is used to count amp-hours over a certain amount of time. That value and the delta state of charge (SOC) for that amp-hour amount are used to determine CAC. This calculation is done whenever there is a drive or charge cycle. However, values are only stored when the calculation is deemed accurate. There are many complex parameters that factor into the accuracy of that number, and the HVC decides when the number is accurate enough to update CAC. One of these parameters is rest time before and after the drive/charge cycle.

If the SOC is flat for a long time before and after the drive, it will result in the most accurate voltage/SOC measurement, which makes the CAC calculation accurate. Therefore, if a driver has constantly charged and drove without ever letting the vehicle rest at a fixed SOC, the CAC algorithm would not update during that time.

Brick balancing

Note

The capacity of a HV battery is limited by the brick with the lowest capacity.

When that brick is charging, it will gain voltage faster than other bricks. The high voltage battery management system will stop charge when any brick reaches its ceiling voltage (~4.2V). If one brick has a significantly lower capacity than others, the HV battery will be limited by that brick, which will get to 4.2V faster than the others. The brick with the lowest capacity is referred to as: min CAC.

Another limitation could come from bricks being imbalanced, or some bricks having a voltage higher/lower than others. This limits HV battery charging because a brick with higher voltage reaches the ceiling voltage early. It also applies during discharge when a brick with the lowest voltage hits the floor voltage earlier. This would cause the high voltage battery management system to open contactors due to low power.

To mitigate this imbalance, battery monitoring boards (BMBs) have some bleed resistors that can be placed and removed in parallel of each brick via a field-effect transistor (FET) relay. The BMB can put that resistor across the brick with the highest voltage, which would slightly discharge that brick and bring it back to the level of the other bricks. The BMB closes an FET which puts that resistor across the brick. The HVC will order BMB to put that bleed resistor across the brick with the highest voltage when Delta V is greater than 5mv and MinBrickV greater than 4.0v (~85% SOC) and HVC State is STANDBY.

Note

BMBs can also perform brick balancing when the HVC is asleep.

Diagnostics

System Health Monitoring

The HV battery is the source of power to the entire powertrain. The HV battery includes many subsystems from which any issue or unexpected behavior can affect other parts of the powertrain. These other ECUs in the powertrain will then trigger their own alerts in addition to the BMS ones. This situation leads to many alerts being reported by the vehicle which can make the diagnostic challenging. For instance, if contactor power was to be interrupted while in Drive, contactors would open, inverters and compressor would report erratic high voltage values and BMS would report loss of low voltage input power.

The Battery Management System (BMS) of the HV battery will trigger alerts when specific events are detected based on all the sensors in the HV battery and the data coming from other ECUs via CAN bus. Those alerts can have different impact on the vehicle behavior. From information only (alert only visible in logs or in Service Mode) or immediately firing the pyro-disconnect to cut the high voltage loop inside the HV battery. Information about these alerts can be found in Toolbox or Service Mode.

If a fault condition is detected while pack-contactors are closed, the system responds to limit or stop current operation. There are various levels of alerts, which lead to different responses from the system. For the HV battery ECUs (BMS, HVBMS, HVP, and/or HVBATT), the impact on the vehicle increases with the severity of the conditions causing an alert to set. The following table describes the different levels of alerts, from least to most impactful:

Alert Level	Description
No Impact	The alert is not visible to the customer and only displayed in logs or service mode UI for information.
Reduced Max SOC	The vehicle can be driven and charged, but only up to a certain State of Charge (SOC). The HV battery cannot charge to 100% SOC.
Reduced Power or Limp Mode	The system limits power to prevent damage. The HVC sets a power limit for other powertrain components.
End Drive and No Restart	The current drive is not affected, but the vehicle may not be able to enter drive mode again.
Graceful Power Off	The system stops current flow and sends an alert to components to stop drawing power. The pack-contactors are opened when the current is low enough.
Immediate Shut Down	The system immediately stops current flow and opens the HV loop, even under load. Alerts are broadcast to the gateway, and contactors are opened.

Diagnostic Strategy

Different diagnostic tools are available to simplify getting to the initial issue that led to many ECUs reporting unexpected behavior and alerts; like Toolbox Articles and Service Mode Plus.

Service Mode Plus Diagnostic Panels

Service Mode Plus provides immediate visual identification of the health of specific vehicle subsystems. For the High Voltage system, three key panels are available:

High Voltage Panel

This panel displays the state of the high voltage distribution from the HV battery to the powertrain, including:

• HV battery status: operation mode, state of charge, HVIL status, and pyro disconnect status
• Pack contactors: state and temporary open button
• DC link: operational state of drive units, PCS, and HV A/C compressor

HV Battery and HV Devices Panel

This panel shows all connected and serviceable HV battery components, color-coded for easy issue identification. For example, when the main HV battery is selected, the panel displays key metrics, including:

• Min and max temperatures
• Min and max brick voltages
• Min and max Calculated Amp Hour Capacity (CAC)
• Pack voltage
• State of Health (SOH) status.

The panel displays vitals information for the following HV battery components:

• HVC
• PCS
• Contactors
• Fast Charge contactors
• Pyro-disconnect
• Shunts

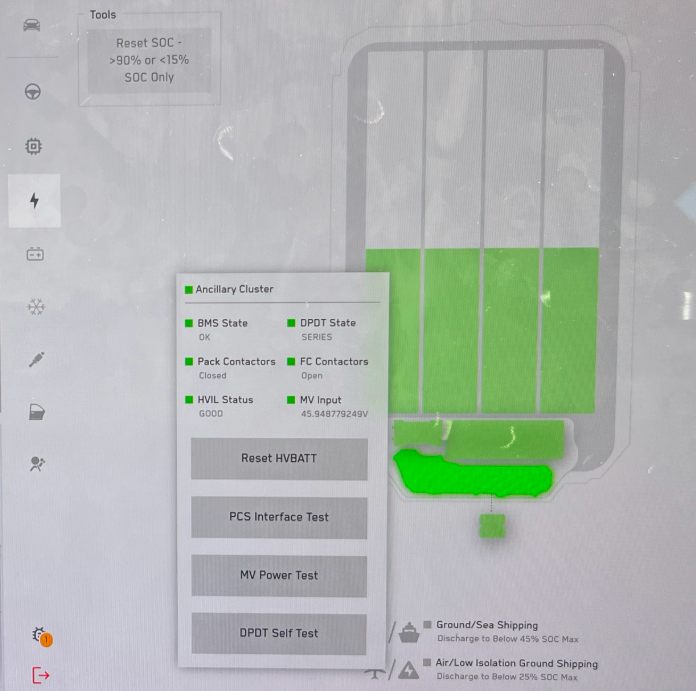

HV Battery and HV Devices Service Panel

HVIL Panel

The overhead view representation of the vehicle displays the HVIL state of all the nodes reporting HVIL over CAN. The display shows:

• HVIL states (open, closed, or missing) from the compressor.

This panel is most effective when an HVIL issue is currently present on the vehicle. However, it can still be useful even if the issue is not currently present, as it allows for:

• Monitoring voltages
• Checking HVIL node states
• Attempting to reproduce the issue while:
  • Charging
  • Driving (with someone else operating the vehicle)

The screenshots demonstrate the HVIL panel in various states:

• Top left: Nominal state, with contactors and HVIL status closed (no issues)
• Top right: HVIL open at HV A/C compressor
• Bottom right: HVIL open at front drive unit
• Bottom left: Master HVIL inverter reported as missing

The HVIL over CAN Service Panel and Examples of HVIL Failures

Repair

HV Battery and HV Devices Repair Routines

The HV Battery and HV Devices panel in Service Mode Plus provides access to the following repair routines:

• Reset SOH test
• Clear blocked contactors
• Clear isolation condition
• Start HV battery discharge using waste heat mode
• Replacement procedures for:
  • Shunt
  • HVC
  • HV battery

Note

The replacement procedures for shunt, HVC, and the battery pack are also available in the HV procedure panel.

HV Procedures Panel

The HV Procedures panel provides access to repair routines to be performed when replacing the following components:

• HVC
• HV shunt
• HV battery
• Drive unit
• Drive inverter

Important

Before powering down the vehicle and removing any of these components, it is required to back up the HVC and inverter memory systems using this panel.

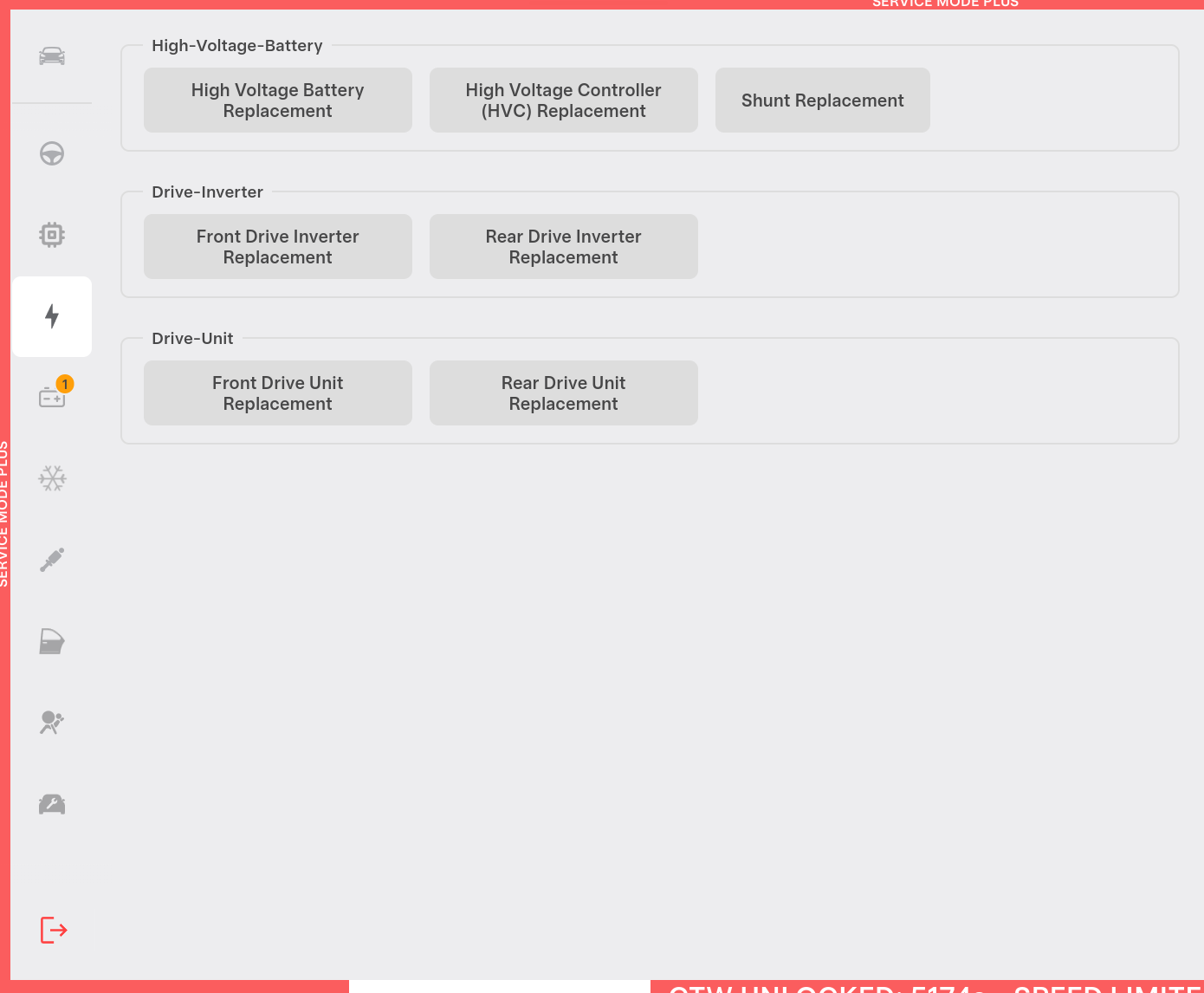

HV Repair Procedures Panel

×
