Alarm System

Last updated: June 07, 2023

Summary

The Model Y is equipped with an alarm system, which monitors for any unwanted entry into the vehicle and alerts the user if any such instance is detected. This system is activated 60 seconds after the vehicle is locked and checks the status of the door and front/rear trunk latches. If any intrusion is detected, the alarm system is activated, causing the horn to sound once every second and turn signals to flash.

Note

Model Y is not equipped with interior ultrasonic intrusion sensors, nor a battery back-up siren.

Specifications

General Alarm Functionality

The alarm functionality can be disabled by the user by going to Settings > Safety and Security > Security Alarm

The alarm is partially armed when the vehicle is parked and locked using the key card, key fob, phone or Walk Away Lock. The alarm will then transition to fully armed after 1 minute if no unlocking request is received.

The alarm is disarmed when the vehicle is unlocked (with key card, key fob or phone) or when the vehicle enters Drive Mode.

If armed, the alarm is triggered when any door or trunk is opened.

Note

The alarm is not triggered if the front or rear trunk get opened by an authorized entry (e.g from Tesla phone application). See Trunk Theory of Operation for more information.

If the alarm is triggered, the horn will sound once every second and the turn signals will flash, except for EU vehicles where the siren will sound instead of the horn.

If triggered, the alarm can be disabled by unlocking the vehicle via an authenticated device. If none are detected, the alarm will be disabled after being activated for 30 seconds and will re-activate after 1 minute, for a maximum of 10 activation cycles.

---

Component Descriptions

Component Locations

The following components make up the Alarm system:

• Vehicle Control Security (VCSEC)
• Vehicle Control Right (VCRIGHT)

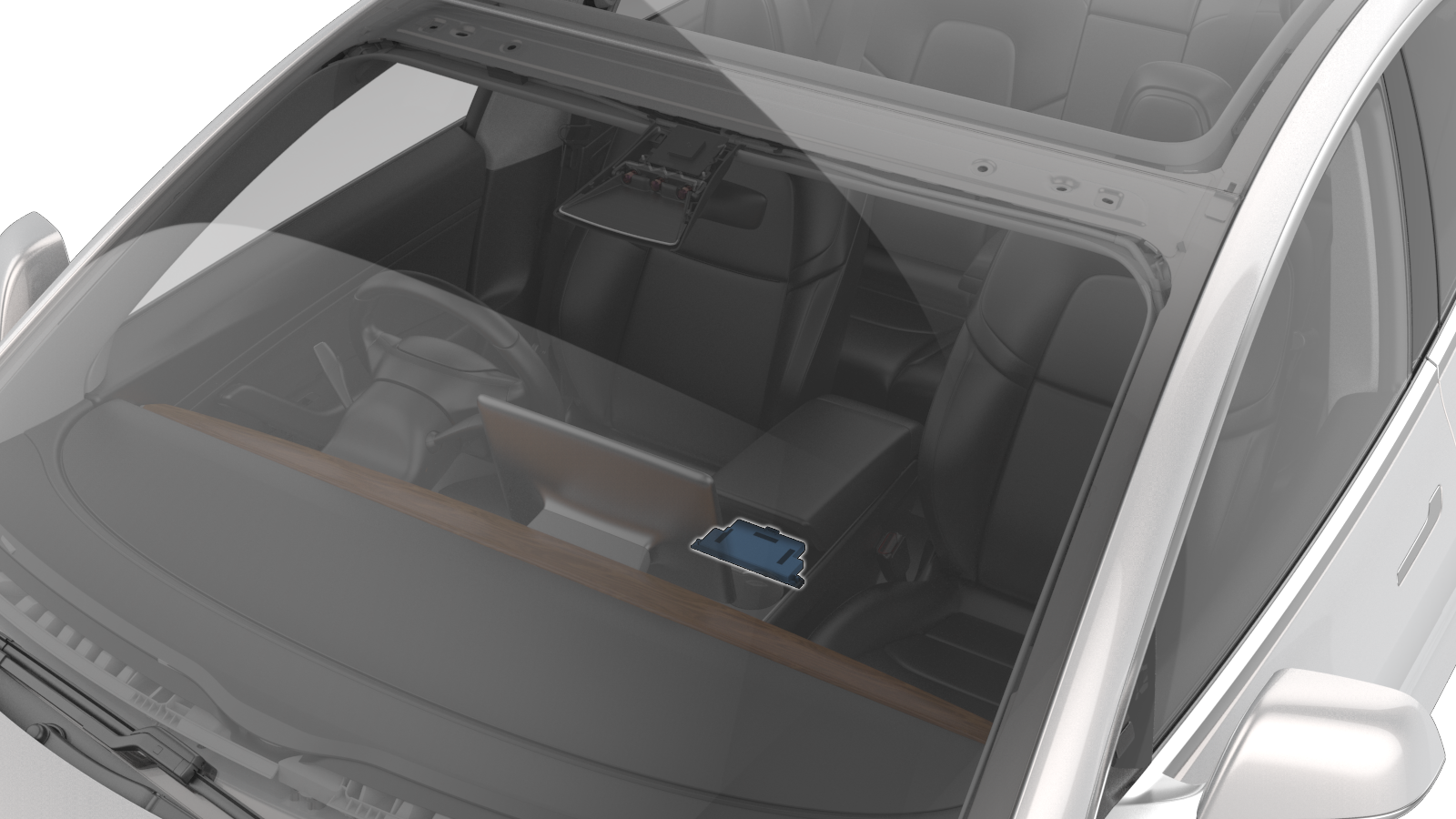

Vehicle Control Security (VCSEC) Location

Vehicle Control Right (VCRIGHT) Location

---

Alarm Operation

All Markets

The Security Vehicle Controller (VCSEC) continuously monitors the status of all latches (front/rear doors and front/rear trunks). When any of the latches are opened while the vehicle is supposed to be locked, the alarm is triggered.

While activated, the horn sounds once every second and the turn signals will flash.

---

Wiring and Communication

Alarm system

VCSEC is the master control unit of the alarm, it requests door and front/rear trunk statuses (via latch position) from VCLEFT (left side doors and rear trunk), VCRIGHT (right side doors) and VCFRONT (front trunk). If any latch signals report that a closure is open while the alarm is armed, VCSEC sends an alarm message to VCFRONT to sound the horn and flash the turn signals.

Behaviors

Alarm States

The alarm state can be determined from the signal VCSEC_alarmStatus routed on the VEH CAN bus. The signal value is determined by VCSEC according to the table below.

Signal value	Description
15 ALARM_STATUS_SNA	When VEH Can bus is asleep.
7 ALARM_STATUS_DEFAULT
6 ALARM_STATUS_IMMINENT	If the alarm is armed and triggered, it will wait 1 second in this status to receive an authentication request. If none is received within the time window, the alarm status will change to ALARM_STATUS_TRIGGERED_FLASH_ACTIVE.
5 ALARM_STATUS_TRIGGERED_FLASH_INACTIVE	The alarm will wait 60 seconds in this state before entering ALARM_TRIGGERED_FLASH_ACTIVE again. If an unlock request is received while in this state, the alarm goes to ALARM_STATUS_DISARMEDEvery time the alarm enters this state due to an Ultrasonic or Tilt trigger, the alarm trigger count is increased. If it reaches 10, the alarm will stays in this state until an authentication is received by the vehicle. This counter is reset when the vehicle is unlocked.
4 ALARM_STATUS_ERROR
3 ALARM_STATUS_TRIGGERED_FLASH_ACTIVE	The alarm is active, horn/siren (depending on the market region) sounding and turn signals flashing. If the alarm remains active for 30 seconds, its status will change to ALARM_TRIGGERED_FLASH_INACTIVE.
2 ALARM_STATUS_PARTIAL_ARMED	The vehicle is locked and the alarm initializes. After 1 minute the alarm status will change to ALARM_STATUS_ARMED.
1 ALARM_STATUS_ARMED	The alarm is enabled and monitoring the vehicle environment.
0 ALARM_STATUS_DISARMED	The alarm is disabled. Either the vehicle is unlocked or the alarm functionality is disabled by the user.

×
